DESCRIPTION

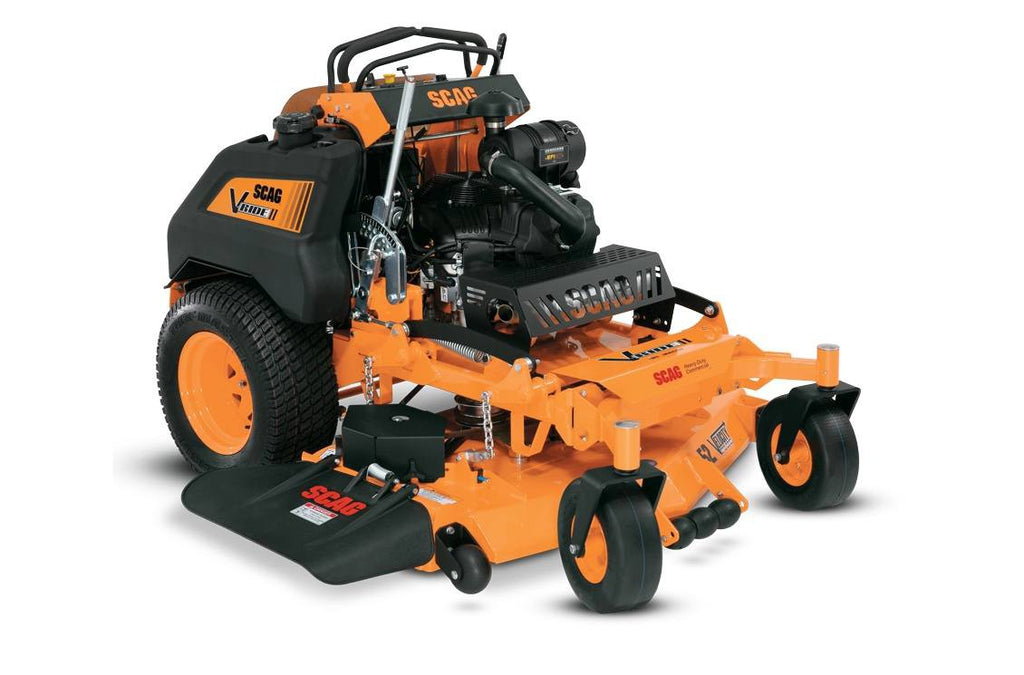

61" Velocity Plus™ Cutter Deck, 38 HP Kohler® Command PRO® EFI - electronic fuel injection

FEATURES

• The envy of the neighborhood - 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48", 52" and 61" widths. An Advantage Cutter Deck is featured on 32" and 36" widths.
• Adjustable Operator Platform - Experience an Unmatched, Ultra-Comfortable Ride: The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator's comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
• Cutter-Deck Lift System - Convenient, Spring-Assisted Lever: Cutter deck can be lifted and locked into transport position from the operator's station. Cutting heights are easily set by placing the tethered pin at the desired height.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 38 HP Kohler® Command PRO® EFI - electronic fuel injection
• Total Fuel Capacity: 5 gallons (32"); 6.75 gallons (36"); 8 gallons (48", 52", and 61")
• Drive Tires: 20" x 6.5"-10" (32"); 20" x 8"-10" (36"); 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
• Caster Tires: 11" x 4"-5" (32" and 36"); 13" x 5"-6" (48" and 52"); 13" x 6.5"-6" (61")
• Seat: Extra-large comfort cushion
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc (32" and 36"); Hydro-Gear 12 cc (48", 52", and 61")
• Motors: Parker 12 ci (32" and 36"); Parker 14 ci (48", 52" and 61")
• Forward Ground Speed: 8.5 mph (32" and 36"); 10.5 mph (48", 52" and 61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 32", 36", 48", 52" and 61"
• Type: Advantage (32" and 36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.; 32" model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT2.5 (150 ft lb) - (32", 36", 48" and 52"); Ogura GT3.5 (250 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 72.75"
• Tracking Width: 48"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height: 47.25"
• Weight: 1,127-1,173 lb

ACCESSORIES

• 2-Bag V-Ride II Spindle Driven Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Plus™ Mulch System
• Hurricane Mulch System
• Mulch Plate
• OCDC - Operator-Controlled Discharge Chute
• Light Kit
• Chrome Wheel Covers
• Air Filter Monitor
• Blade Buddy
• 12-Volt Accessory Outlet
