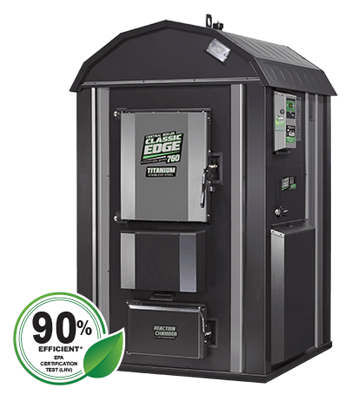

Classic Edge 760 Titanium HDX Outdoor Wood Furnace

Overall Efficiency (LHV) - 84.4%*

Overall Efficiency (HHV) - 78.3%*

Manufacturer's Rated Heat Output Capacity - 245,000 Btu/hr**

Heat Output (12 hr) - 146,686 Btu/hr

Firebox Volume - 23 cu ft

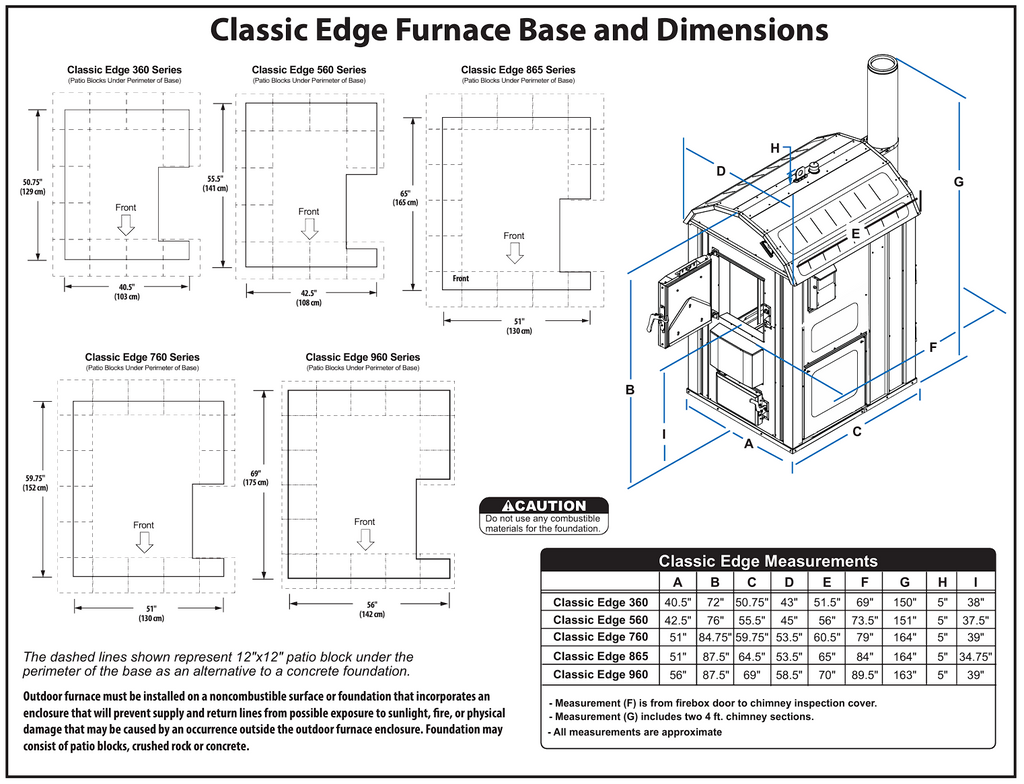

Firebox Dimensions - 37" L x 44" H x 26" W

Door - 21" W x 25" H

Ash Cleanout Door - 19" W x 11" H

Water Capacity - 330 gal.

Weight - 2,036 lbs

Supply/Return Ports - 1 set of 1-1/4" supply and return ports, 2 sets of 3/4" supply and return ports

Integrated Wi-Fi Connectivity - Standard

Bypass Door and Alarm - Standard

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

The Classic Edge 760 HDX is EPA Step 2 Certified.

NOTE: Specifications are subject to change without notice.

*Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency.
**Based on EPA qualifying test.
