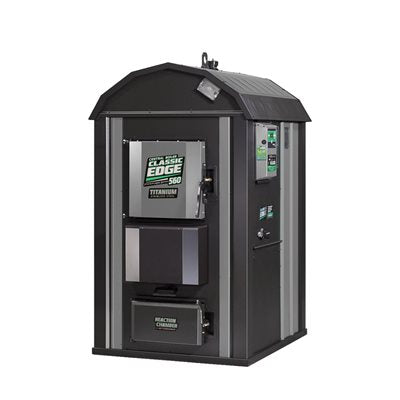

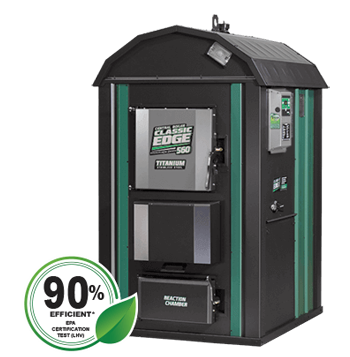

Classic Edge 560 Titanium HDX Outdoor Wood Furnace

Classic Edge 560 Titanium HDX

Overall Efficiency (LHV) - 86.4%*

Overall Efficiency (HHV) - 80.6%*

Manufacturer's Rated Heat Output Capacity - 190,000 Btu/hr**

Heat Output (12 hr) - 92,000 Btu/hr

Firebox Volume - 14 cu ft

Firebox Dimensions - 33"L x 32"H x 23"W

Door - 18"W x 18"H

Ash Cleanout Door - 18"W x 9"H

Water Capacity - 205 gal.

Weight - 1,668 lbs

Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)

Integrated Wi-Fi Connectivity - Standard

Bypass Door and Alarm - Standard

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

The Classic Edge 560 HDX is EPA Step 2 Certified.

NOTE: Specifications are subject to change without notice.

* Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency.
**Based on EPA qualifying test.
