Description:

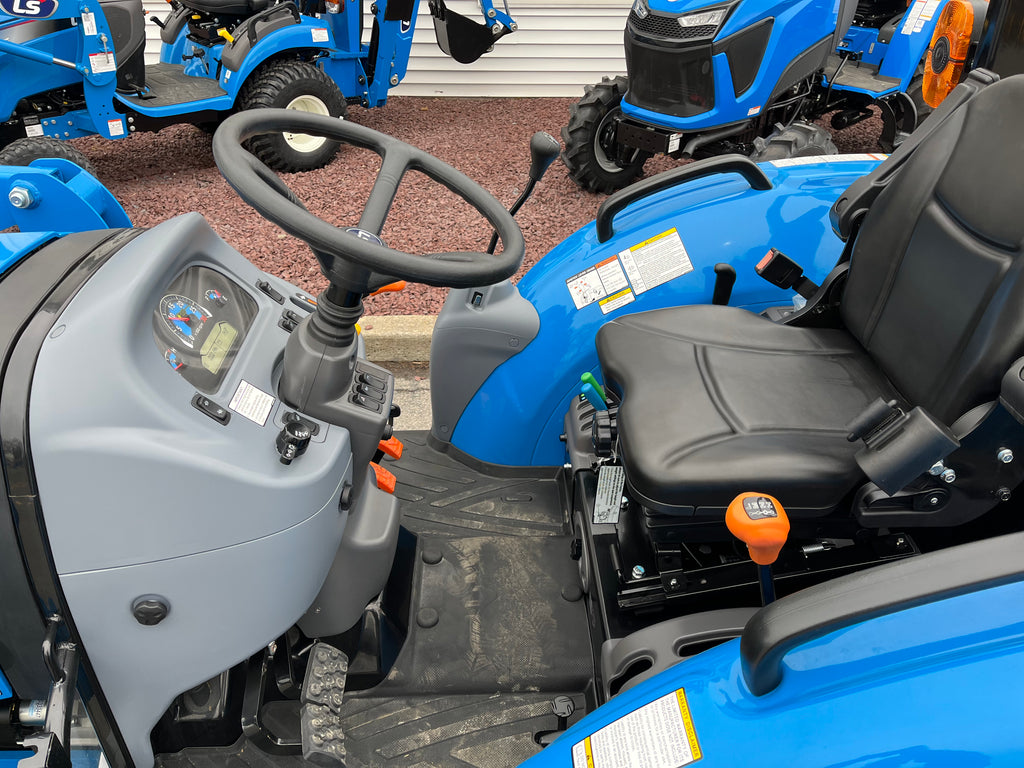

The MT3 series compact tractor comes in several configurations, one of these is the popular cab configuration. This feature along with high-performance and quality design makes this LS tractor series ready for a variety of applications.

Specifications:

ENGINE

• Type: 3-Cylinder, CRDI, Water-cooled Turbo Diesel
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 35 HP
• PTO HP: 28.0 HP
• Rated Speed: 2,600 RPM
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity: 10.6 gal
• Alternator: 12V – 85 Amps

DRIVE TRAIN

• Transmission: Synchro Shuttle / HST
• Speeds: 12 Forward / 12 Reverse (12F / 12R)
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear PTO RPM: 540 (Standard)
• Mid PTO RPM: 2,000 (Optional)

HYDRAULIC SYSTEM

• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow: 4.1 gpm (Synchro Shuttle) / 5.5 gpm (HST)
• Total Flow: 12.3 gpm (Synchro Shuttle) / 13.7 gpm (HST)
• Category (3-Point Hitch): CAT I
• Hitch Lift Capacity: 1,808 lbs
• Lift Control Type: Position / Draft
• Remote Valves: 2 Pairs (Front), 2 Pairs (Rear, Detent, Standard)

DIMENSIONS

• Overall Length (with 3-Point Hitch): 124.3 in.
• Wheelbase: 66 in.
• Minimum Overall Width (with Ag Tires): 60 in.
• Height to Top of ROPS (with Ag Tires): 93 in.

TIRE SIZE

• Agricultural Tires (Front/Rear): 7 – 14 / 11.2 – 24
• Industrial Tires (Front/Rear): 25 x 8.5 – 14 / 43 x 16 – 20
• Turf Tires (Front/Rear): 25 x 8.5 – 14 / 41 x 14 – 20

WEIGHT

• Total Weight (without ballast): 3,285 lbs

Width	Weight	Height	Length
	3285 Kilograms		0 Inch
