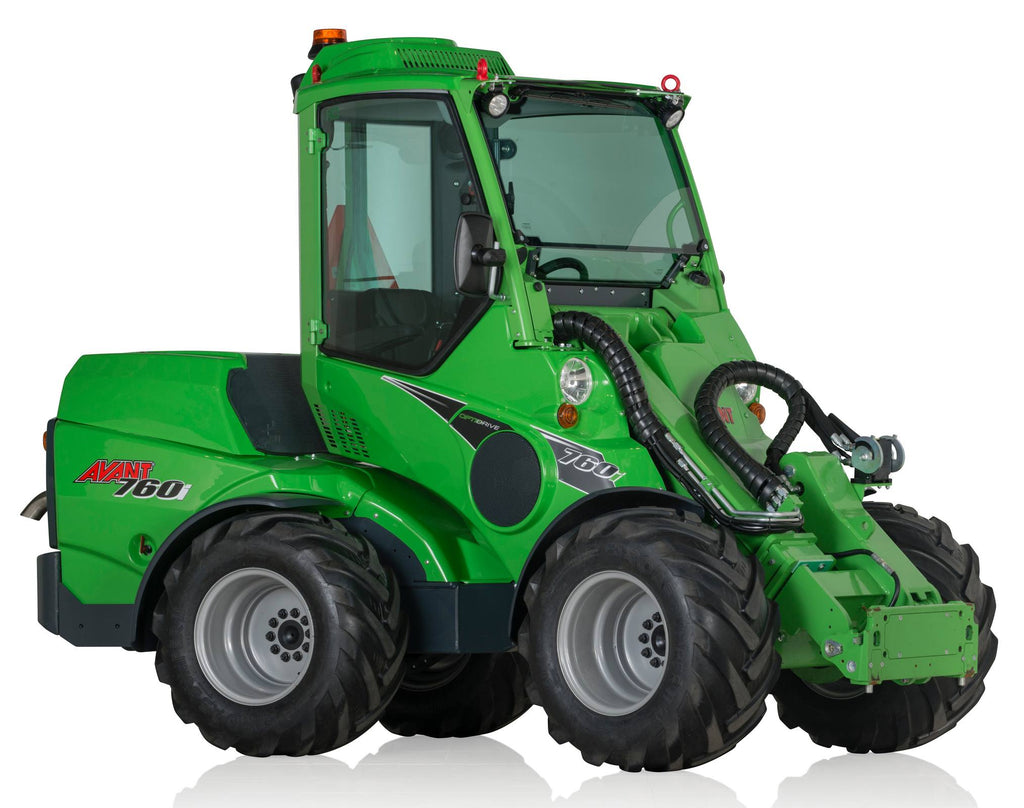

Avant M760 760i Articulated Compact Loader

Avant WholegoodsSKU: M760

Price:
$0.00
Stock:
In stock

Pickup available at Martin's Outdoor Power LLC - Geneva


Usually ready in 24 hours


GET MORE INFO


PRICE, IMAGES, & DESCRIPTION

Agricultural and landscaping equipment is often sold in modular configurations or with factory-installed attachments, which are sometimes stocked, listed, and invoiced separately. (For example: Tractors and bucket loaders, or front-cut mowers and decks, etc.)

For configurable models, the price displayed may not be inclusive of all pre-combined components as displayed, or all necessary components for proper functionality.

Descriptions may include important details and specifications that refer to common options or add-ons that may not be included.

For major equipment purchases, we earnestly recommend contacting us for configuration details and to request a purchase or financing quote.

Call us or use the quote form below the description.

CUSTOM SHIPPING CHARGES

Most wheeled equipment and large items will require your order's shipping charges to be custom calculated.

To quote you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

After you approve your quote, the freight charges will be added to your order and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded.

You may request a shipping quote before purchase, and we will assist you with your order.

Unpaid equipment cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

×

Description

Description

The Avant M760 760i Articulated Compact Loader is a high-performance multi-purpose loader designed for demanding construction, landscaping, property maintenance, agriculture, and material-handling applications. Powered by a 56 HP Rehlko/Kohler 3-cylinder Stage V diesel engine, it combines high hydraulic flow, strong lifting capacity, hydrostatic 4WD, and a telescopic boom for excellent versatility. The 760i can operate a wide range of hydraulic attachments while maintaining a compact footprint and high travel speed.


Key Specifications

• Model: M760 / 760i

• Type: Articulated Compact Loader

• Engine: Rehlko/Kohler KDI-TCR 1903 Stage V 3-Cylinder Diesel

• Engine Power: 56 HP (42 kW)

• Maximum Torque: 220 Nm

• Drive System: Hydrostatic 4WD with Avant Optidrive®

• Transmission: Hydrostatic

• Maximum Speed: 16.2 mph (26 km/h)

• Lift Capacity: 3,086 lb (1,400 kg)

• Maximum Lift Height: 122 in (3,100 mm)

• Auxiliary Hydraulic Flow: 21.1 GPM (80 L/min)

• Auxiliary Hydraulic Pressure: 3,260 PSI (225 bar)

• Standard Tire Size: 400/50-15

• Turning Radius: 49.2 in inside / 105.3 in outside

• Overall Width: 57.1 in (1,450 mm)

• Overall Length: 120.5 in (3,060 mm)

• Overall Height: 83.1 in (2,110 mm)

• Telescope Boom Extension: 27.6 in (700 mm)

• Fuel Type: Diesel

• Applications: Construction, Landscaping, Agriculture, Snow Removal, Material Handling, Grounds Maintenance, and Attachment Work

• Operating Weight: Approximately 4,630 lb (2,100 kg) with ROPS


Features

• Powerful 56 HP Stage V diesel engine provides strong performance for demanding applications.

• Hydrostatic 4WD with Avant Optidrive® delivers excellent traction and maneuverability.

• High-flow auxiliary hydraulics support a broad range of demanding hydraulic attachments.

• Telescopic boom provides additional reach and lifting versatility.

• 3,100 mm maximum lift height makes it suitable for loading and material-handling tasks.

• Compact articulated design provides a tight turning radius for confined work areas.

• Two drive-speed ranges allow efficient operation during both working and transport applications.

• Multiple cab options are available, including enclosed cab configurations with heating and air conditioning.

• Designed to operate a wide variety of Avant attachments for year-round versatility.
