Description:

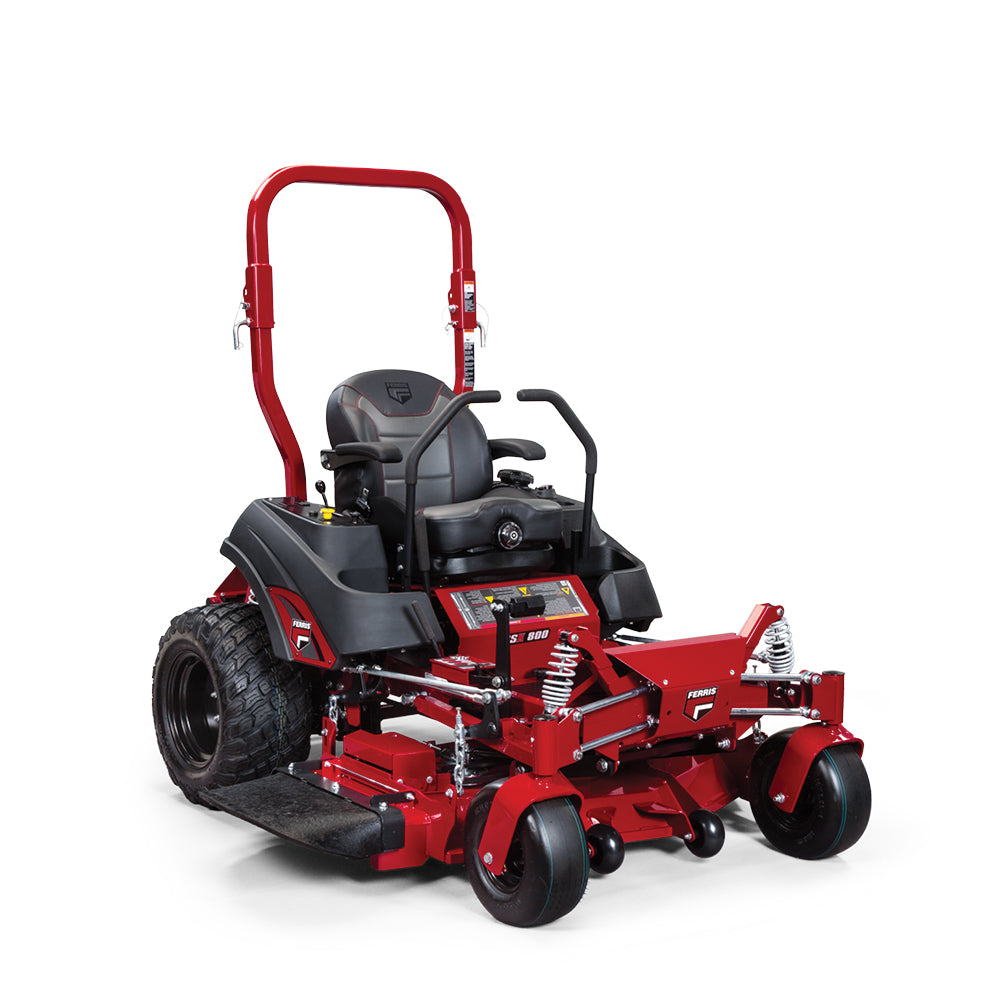

The ISX™ 800 is engineered to increase comfort and efficiency, including new OilXtend™ technology to boost productivity. We combine next-generation Ferris technology - ForeFront™ Suspension with iCD™ and iCD™+ Cutting Systems for a smoother ride and improved cut.

Specifications:

Engine & Power

• Engine Brand: Briggs & Stratton® CXi
• Engine Power: 27 hp
• Displacement: 810 cc
• Fuel Type: Gasoline
• Starter: Electric
• Cylinders: 2
• PTO (Power Take-Off): Electric

Fuel & Instrumentation

• Fuel Tank Capacity: 5.5 gallons
• Hour Meter: Dual-function
• Fuel Gauge: In-tank

Drive System

• Transmission: Dual Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
• Drive Axles: 1.125 in
• Ground Speed (Forward): 0 – 10 mph
• Ground Speed (Reverse): 0 – 5 mph

Cutting System

• Deck Size: 52 inches
• Deck Type: iCD™+ Cutting System, 2-Belt
• Cutting Height Range: 1.5 – 5 inches
• Spindles: Aluminum, Greaseable

Tires

• Front (Caster) Tires: 13 x 6.5-5 in
• Rear (Drive) Tires: 23 x 10.5-12 in

Dimensions & Weight

• Overall Length: 81 in
• Overall Width: 65 in (deflector down), 57 in (deflector up)
• Dry Weight: 1,206 lbs

Comfort & Safety

• Seat: Mid-back suspension seat with adjustable armrests
• Suspension: ForeFront™ Suspension System
• ROPS (Roll-Over Protection): 180° foldable
• Controls & Safety:
• Seat-activated engine kill
• Clutch safety switch
• Neutral & parking brake circuit
• Adjustable twin steering controls
• Parking Brake: Hand-operated internal transaxle brake

Warranty

• Engine: 3-Year Limited
• Machine:
• 4-Year / 500 hours (whichever comes first)
• Unlimited hours for first 2 years
• 5-Year unlimited hour coverage on suspension components

Width	Weight	Height	Length
0 Inch	1206 Pounds	0 Inch	0 Inch
