Description:

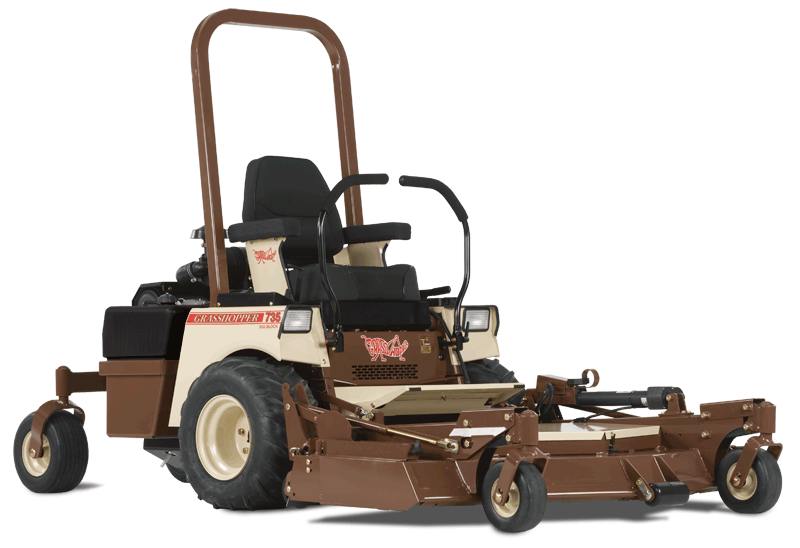

The Grasshopper Model 735BT riding lawn mower combines zero-turn maneuverability with rugged performance with unparalleled operator comfort to eliminate fatigue and maximize productivity. The mower is designed with professional-grade quality for years of dependable service for both homeowners and landscapers alike. Out-front reachability reduces secondary trimming. Decks may be rotated to a vertical position with PowerFold® deck lift/electric height adjustment for easy cleaning and to fit more mowers on a trailer. Decks remove in favor of other implements for year-round productivity.

Features:

• Single-fork Tail Wheel:
• Enhances weight distribution, stability, and castering effect for improved maneuverability.
• T6® Drive Hydrostatic Transmission:
• Tandem 16cc Parker pumps-in-reservoir transmission with Parker high-torque wheel motors.
• In-line CoolFan™ cooling system for efficiency and long service intervals.
• Smooth response with less maintenance, featuring a 1,000-hour fluid change interval.
• QuikConverter™ Implement Capability:
• Add or remove implements without tools, enhancing versatility for turf cleanup, renovation, and snow removal.
• AntiVibe Power Platform®:
• Isolates engine and T-Drive™ for a vibration-free experience.
• Minimal Maintenance:
• Fewer than 10 grease points and easy top-side access to belts and filters.
• 1,000-hour transmission fluid change intervals.
• Self-tensioning belts minimize cost and labor on routine maintenance.
• Vigilant Operator Presence System™:
• Standard low profile Roll-over Protection System (ROPS) with adjustable seatbelt.
• Dampened steering levers and interlock switches ensure safety during operation.
• B&S Vanguard Big Block:
• 993 cc, air-cooled OHV Vanguard Big Block V-twin engine for longer life.
• PowerFold® Electric Deck Lift:
• Zero-turn mower industry's first electric deck lift for easy access and maintenance.
• Heavy-duty Deck:
• Extra-deep, 5.5-inch fabricated steel deck for durability and quality cut.
• Convertible deck with Sentry™ spindles for strength and protection.
• Built for Long Life:
• Robotic-welded high-grade steel construction with I-beam reinforcement.
• Tough powder-coated finish for chip and rust resistance.
• LED Work Lights:
• Improved visibility in low light conditions.
• Warranty:
• Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
• Residential Use: 4-year or 800-hour limited warranty covering parts and labor.
• Ultimate Operator Station™:
• Deluxe Premium Comfort Seat with coil-spring suspension and lumbar support.
• Operational controls, angled console, and adjustable cup holder for convenience.
• QuikAjust Tilt™ dual levers for customized reach and ease of operation.

Specification:

Engine:

• Type/Horsepower/Cylinders: B&S Vanguard Big Block, V-Twin
• Displacement: 60.6 cu. in. (993 cc)
• Lubrication System: Pressure Lube/Filter
• Crankshaft: Horizontal
• Cooling System: Air
• Fuel: Gasoline - unleaded
• Fuel Capacity: 7.2 U.S. Gal. (27.3 l)
• Air Cleaner: Heavy-duty, remote mounted, cyclonic, dual element air filtration.
• Muffler: Ultra quiet, single, industrial type

DuraMax® Decks:

• DECK: DuraMax
• Mulching Package: Available for 61" and 72" decks

Ultimate Operator Station:

• Seat: Iso-mounted Premium Comfort Seat with high-back, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension, and embroidered Grasshopper logo.
• Suspension: AntiVibe PowerPlatform™ with iso-mounted seat and footrest
• Console-mounted Instruments: Includes low engine oil pressure and parking brake warning lights, digital hour meter, work lights, ignition, and push/pull PTO switches.

Transmission & Steering:

• Type: T6® hydrostatic transmission with tandem 16 cc Parker pumps-in-reservoir, in-line CoolFan™ for cooling efficiency, design-matched Parker high-torque wheel motors.
• Speed: 0 - 10.0 mph (0 - 16.1 kph) forward, 0 - 6.0 mph (0 - 9.7 kph) reverse
• Turning Radius: True zero degree, turns within own length with counter-rotating, independently powered drive wheels.

Starter & Electrical System:

• Battery: 12 Volt maintenance-free
• Starter: Solenoid shift
• Ignition: Breakerless
• Interlock System: Prevents engine start when PTO clutch is engaged or steering levers are in drive position.

Attachment Drive:

• Telescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler, and heavy-duty electric Mag Stop® blade clutch/brake.

Tire Sizes:

• MidMount Drive Wheels (Standard): 22x11.00x10 bar tread, high flotation, 4-ply rated
• Single Tail Wheel: 13x6.50x6 rib tread, pneumatic (2)

Dimensions:

• Height (Seat Back): 47.0 in. (119.4 cm)
• Height (Seat Cushion): 30.5 in. (77.5 cm)
• Height (ROPS): 69.0 in. (175.3 cm)
• Length: Varies based on deck size
• Width: Varies based on deck size

Weight :

• Front Mount Power Unit Only: 930 lbs. (421.8 kg)
• Front Mount Deck Only (Side Discharge): Varies based on deck size
• Mulching Package: Varies based on deck size
