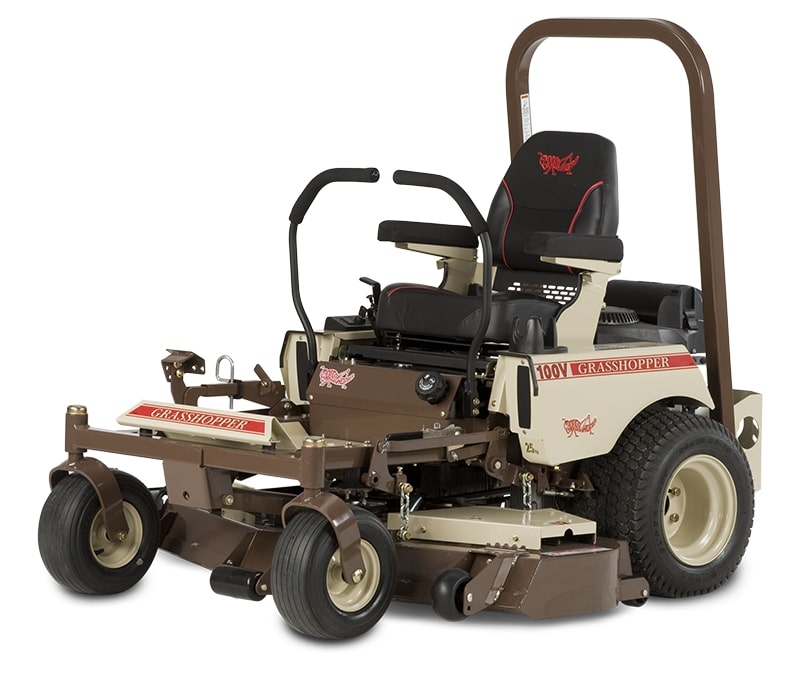

Grasshopper MidMount™ 100V Series Air-Cooled Gas125V

GrasshopperSKU: 534054
Price:
$9,305.00
Stock:
In stock

Pickup available at Martin's Outdoor Power LLC - Geneva


Usually ready in 24 hours


GET MORE INFO


PRICE, IMAGES, & DESCRIPTION

Agricultural and landscaping equipment is often sold in modular configurations or with factory-installed attachments, which are sometimes stocked, listed, and invoiced separately. (For example: Tractors and bucket loaders, or front-cut mowers and decks, etc.)

For configurable models, the price displayed may not be inclusive of all pre-combined components as displayed, or all necessary components for proper functionality.

Descriptions may include important details and specifications that refer to common options or add-ons that may not be included.

For major equipment purchases, we earnestly recommend contacting us for configuration details and to request a purchase or financing quote.

Call us or use the quote form below the description.

CUSTOM SHIPPING CHARGES

Most wheeled equipment and large items will require your order's shipping charges to be custom calculated.

To quote you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

After you approve your quote, the freight charges will be added to your order and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded.

You may request a shipping quote before purchase, and we will assist you with your order.

Unpaid equipment cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

×

Description

Description:

Combining commercial-grade features and powerful performance in a compact design, the Model 125V riding lawn mower with zero-turn maneuverability is ideal for tight quarters mowing and is a great way to step up to Grasshopper comfort, quality and durability.

MidMount™ Mower Decks

Superior Strength and Durability

Grasshopper MidMount™ mower decks offer superior strength and durability with minimal service. Coupled with a deep deck design that enhances airflow, these qualities provide a superior cut while reducing worries about downtime and repairs.

Versatile MidMount™ mower decks let you change the way you mow without changing decks, facilitating easy conversion from standard side discharge to optional Down Discharge™ mulching or PowerVac™ collection with the same deck. In addition, our 4X Dedicated Rear Discharge™ deck provides a manicured cut while keeping the clippings on the turf and away from roadways and sidewalks.

Features:

  • Heavy-duty Deck
  • Vigilant Operator Presence System™
  • Shock Impact Reduction System™(SIRS™)
  • Kohler Confidant Engine
  • QuikAjust® Drop Pin Height Adjustment
  • Warranty
  • Design-Matched Transmission
  • Ultimate Operator Station™
  • Reduced Maintenance
  • Rugged Construction

Specifications:

  • Engine Information
  • Type: Kohler Confidant, V-Twin
  • Horsepower: 45.6 cu. in. (747 cc)
  • Lubrication System: Pressure Lube/Filter
  • Crankshaft: Vertical
  • Cooling System: Air
  • Fuel: Gasoline - unleaded
  • Fuel Capacity: 6.5 U.S. Gal. (24.6 l)
  • Air Cleaner: Heavy-duty cyclonic air filter with QUAD-CLEAN™ multi-stage air filtration
  • Muffler: Ultra quiet, single, industrial type
  • DURAMAX® Deck
  • Deck Size: 52" Deck
  • Cutting Height Range: 1.0 to 4.5 in. (2.5 to 11.4 cm)
  • Construction: Robotic-welded, double-layered 10-gauge plus 10-gauge formed-steel spindle plane (0.269 in / 6.83 mm thick) with 7-gauge skirts. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
  • Blades:
  • 3) 18 in. (45.7 cm)
  • Spindle Assemblies: Sentry™ Spindle System with 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings, non-greasable. Shield housing and lower bearings to protect from fiber wrap and dirt ingestion.
  • Spindle Housings: 8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern
  • Blade Drive: Belt drive with single Kevlar V-belt and idler arm tensioning.
  • Starter & Electrical System
  • Battery: 12 Volt, maintenance-free
  • Starter: Solenoid shift
  • Ignition: Breakerless
  • Interlock System: Prevents engine start when PTO clutch is engaged or steering levers are in drive position.
  • Ultimate Operator Station
  • Seat: Iso-mounted Premium Comfort Seat. Features include high-back, deep-cushioned, foam-padded Cordura®-covered, padded foldable arm rests, padded backrest with lumbar support, coil-spring suspension, and embroidered Grasshopper logo.
  • Suspension: Iso-mounted footrest with Shock Impact Reduction System™ (SIRS™).
  • Console-mounted Instruments: Digital hour meter, parking brake indicator light, ignition switch, choke, and push/pull PTO switch.
  • Work Lights: Optional LED
  • Transmission & Steering
  • Type: Design-matched hydrostatic system with in-line cooling fans, fully hydraulic, integrated Parker HT Series transmission with variable displacement piston-type pumps and high-torque wheel motors.
  • Speed: 0 - 8.0 mph (0 - 12.9 kph) forward, 0 - 6.0 mph (0 - 9.7 kph) reverse
  • Turning Radius: True zero-degree, turns within its own length with counter-rotating, independently powered drive wheels.
  • Steering: Adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position.
  • Brakes: Dynamic braking through hydrostatic transmission, Parking brake: Compression
  • Tire Sizes
  • Drive Wheels (Standard, 4-ply rated): 20x10x10 turf, 4-ply rated
  • Front Wheels: 13x6.50x6; pneumatic with greasable, double-sealed bearings
  • Deck Tires (4-ply rated): NA
  • Dimensions
  • Height (Seat Back): 47.0 in. (119.4 cm)
  • Height (Seat Cushion): 29.0 in. (73.7 cm)
  • Height (ROPS): 59.0 in. (149.9 cm)
  • Length (midmount w/ DuraMax® Deck - Mowing Position): 75.0 in. (190.5 cm)
  • Deck Width (Side Discharge): 65.5 in. (166.5 cm)
  • Deck Width (Mulch): 53.5 in. (135.9 cm)
  • Weight (Uncrated)
  • 52" Deck: 830 lbs. (376.5 kg)
