Description:

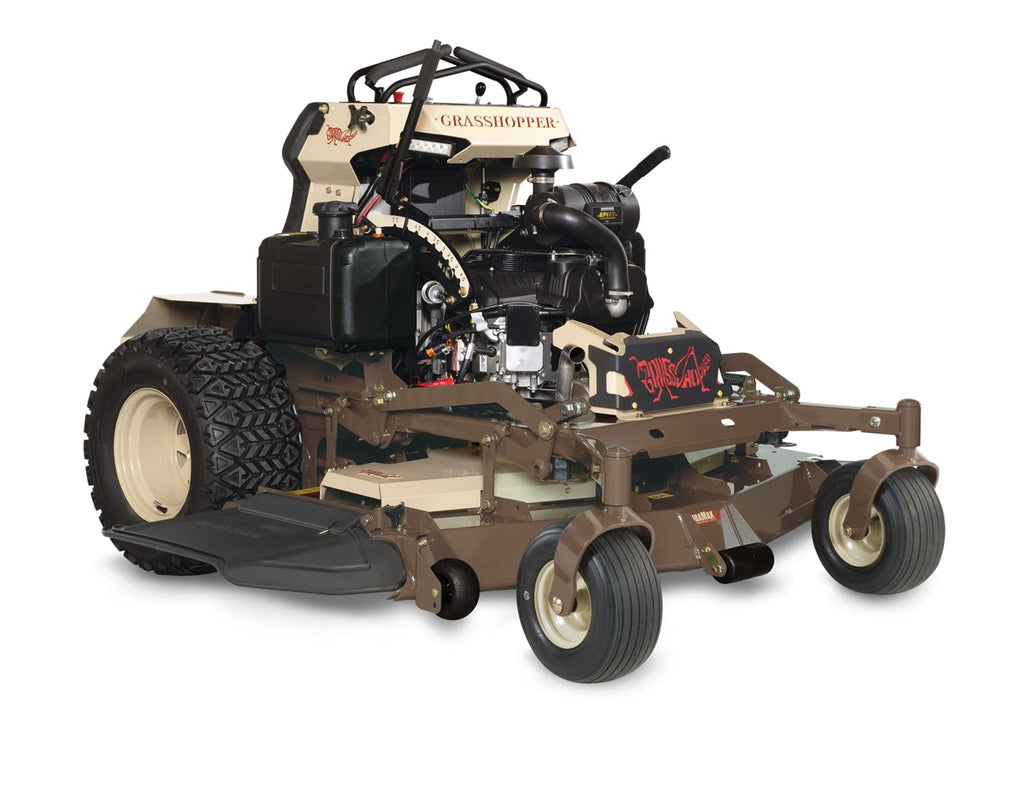

Take your business to the next level. The Stand-On Series is designed for extreme operator proficiency and all-day ergonomic comfort. True ZeroTurn™ maneuverability, outstanding ease-of-use, effortless on/off and legendary Grasshopper cut quality combine to deliver superior performance.

Fleet managers will appreciate the commonality of parts between Stand-On models and the rest of the Grasshopper product line.

Features:

LED Work Lights

LED work lights provide improved visibility in low light situations.

Rugged Construction

• Robotically-welded steel construction for long-lasting durability
• Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
• Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance

Low Center of Gravity

Every Grasshopper mower is designed with a low center of gravity for optimal traction and stability. The centralized location of the engine, T-Drive™ pump and dual fuel tanks on Stand-On models lowers the overall center of gravity, and a total fuel capacity of 9.25 gal/35.0 L reduces the need for frequent refueling.

Specifications:

ENGINE

• Type / Horsepower / Cylinders: B&S Vanguard V-Twin EFI/ETC
• Displacement: 60.6 cu. in. (993 cc)
• Lubrication System: Pressure lube with filter
• Crankshaft: Vertical
• Cooling System: Air
• Fuel: Unleaded gasoline
• Fuel Capacity: 9.25 U.S. gal. (35.0 L) – twin tanks with fuel selector
• Air Cleaner: Heavy-duty cyclonic, remote-mounted dual cleaner with replaceable element
• Muffler: Ultra-quiet, single, industrial type

DECK – DuraMax® 61″

• Cutting Height Range: 1.0 – 5.5 in. (2.5 – 12.7 cm) in ¼-in. increments
• Construction: Robotic-welded double-layered 10-gauge + 7-gauge laminate spindle plane
• 0.313 in. (7.95 mm) thick (25% thicker than 0.25 in.)
• 7-gauge skirts for strength
• Stress zones up to 0.9 in. (22.86 mm) thick
• Anvil-edge design w/ 0.5 in. (12.7 mm) reinforcement on front edge
• Blades: (3) 21 in. (53.3 cm), tempered alloy steel
• Spindle Assemblies: Sentry™ spindle system, ~1 in. O.D. shaft, double bearings, greasable from top, anti-fiber wrap design
• Spindle Housings: 8-in. (20.3 cm) machined aluminum housing, 6-bolt pattern
• Blade Drive: Kevlar V-belt w/ idler arm tensioning
• Trimability (outside std. tire to left trim side): N/A

OPERATOR STATION

• Seat: N/A
• Suspension: Coil spring w/ dampening
• Instruments: Low oil pressure, hour meter, USB charging ports, parking brake light, ignition switch, choke, PTO switch
• Work Lights: Standard – LED
• Hour Meter: Standard

TRANSMISSION & STEERING

• Tire Sizes (MidMount):
• Drive Wheels (standard): 26 × 12-12 Mag OTR, 4-ply rated
• Optional: N/A

DIMENSIONS

• Length (Mowing Position, Stand-On w/ Deck): 77.0 in. (185.6 cm)
• Deck Width (Side Discharge): 74.5 in. (189.2 cm)
• Deck Width (Mulch): 62.5 in. (158.8 cm)
• Weight (Uncrated, w/ Deck): 1,250 lbs. (567.0 kg)

Width	Weight	Height	Length
0 Inch	1250 Pounds	0 Inch	0 Inch
