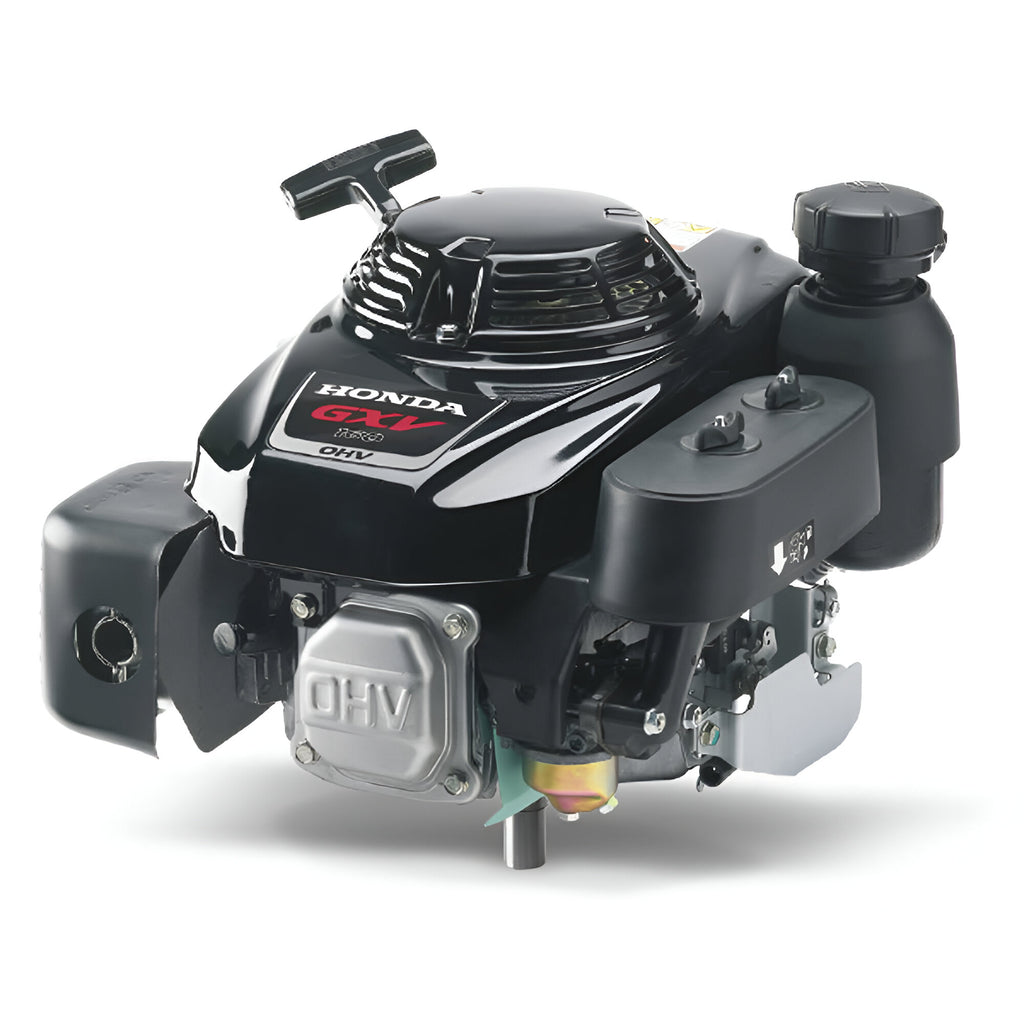

Honda GXV160

HondaSKU: GXV160-GXV160N1X2
Price:
$645.45

IMPORTANT NOTE

Most agricultural tractor platforms, front-cut mowers, and snowplow systems are modular, with configurable components that are generally sold separately. This can include, but is not limited to front-end loaders, backhoes, buckets, PTO and hydraulic attachments, front-mounted mower decks, operator enclosures, comfort accessories, snowplow blades, electronic controllers, and associated mounting components.

Subsequently, a completed retail package may vary from the image, price, or online description, depending on the application and options selected. Because many modular system components are sourced from the manufacturer and stocked separately, the price listed may be for an individually SKU'd component and may not be inclusive of all pre-combined equipment as displayed, or all necessary components for proper functionality. Due to the wide variety of user applications, the online description may refer to common or optional system platforms or components that may not be included in the individual SKU's price.

For major equipment purchases, we earnestly recommend contacting us for configuration details and complete package pricing.

CUSTOM SHIPPING CHARGES (WHEN APPLICABLE)

Certain items (including most wheeled equipment), due to weight, size, shape, material, contents, fragility, or value may require your order's shipping charges to be custom calculated. In order to guarantee you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

Once your shipping charges are calculated, you will be contacted with your shipping quote, which, only after your approval, will be added to your order, and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded, and credited back according to your financial institution's policies.

If you require a quote before placing an order to claim your item, use the contact box (below the item description), or call any of our helpful locations. However, please note that equipment for sale cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

Pickup currently unavailable at Martin's Outdoor Power LLC - Geneva


Description

Description:

The GXV160 engine is suitable for a wide range of heavy-duty applications such as lawn mowers, construction equipment and other industrial applications.


Features:

  • The OHV design enhances combustion efficiency
  • High power-to-displacement ratio
  • Easy starting with an automatic decompression system
  • Low vibration and noise levels
  • High quality materials and purpose-built components ensure reliable long-term use
  • Exceeds European exhaust emission legislation
  • Low fuel and oil consumption


Specifications:

  • Engine Type: 4-stroke single cylinder, OHV (Overhead Valve) petrol engine with a vertical shaft
  • Cylinder Sleeve Type: Cast iron sleeve
  • Bore x Stroke: 68 x 45 mm
  • Displacement: 163 cm³ (or 1.63 liters)
  • Compression Ratio: 8.0 : 1
  • Net Power: 3.2 kW (4.3 HP) at 3600 rpm
  • Continuous Rated Power: 2.0 kW (2.7 HP) at 3000 rpm
  • Max. Net Torque: 9.6 Nm (0.98 kgfm) at 2500 rpm
  • Ignition System: Transistorized ignition system
  • Starter: Recoil starter
  • Fuel Tank Capacity: 1.4 liters
  • Fuel Consumption at Continuous Rated Power: 1.1 L/h at 3000 rpm
  • Engine Oil Capacity: 0.65 liters
  • Dimensions (L x W x H): 420 x 365 x 357 mm
  • Dry Weight: 15.5 kg

Width Weight Height Length
14.1 Inch 32 Pounds 13.9 Inch 16.3 Inch
