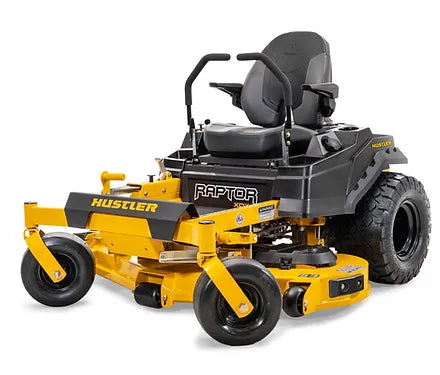

Hustler Raptor XDX 54" Kawasaki FR691 (23HP) Zero-Turn Mower (939835)

HustlerSKU: Hustler Raptor XDX 54" Kawasaki FR691 (23HP) Zero-Turn Mower (939835)-939835
Price:
$6,649.00
Stock:
Sold out

Pickup currently unavailable at Martin's Outdoor Power LLC - Geneva



PRICE, IMAGES, & DESCRIPTION

Agricultural and landscaping equipment is often sold in modular configurations or with factory-installed attachments, which are sometimes stocked, listed, and invoiced separately. (For example: Tractors and bucket loaders, or front-cut mowers and decks, etc.)

For configurable models, the price displayed may not be inclusive of all pre-combined components as displayed, or all necessary components for proper functionality.

Descriptions may include important details and specifications that refer to common options or add-ons that may not be included.

For major equipment purchases, we earnestly recommend contacting us for configuration details and to request a purchase or financing quote.

Call us or use the quote form below the description.

CUSTOM SHIPPING CHARGES

Most wheeled equipment and large items will require your order's shipping charges to be custom calculated.

To quote you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

After you approve your quote, the freight charges will be added to your order and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded.

You may request a shipping quote before purchase, and we will assist you with your order.

Unpaid equipment cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

×

Description

Description


Hustler Raptor XDX 54″ Zero Turn Mower – 939835

The Hustler Raptor XDX 54" is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry-leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

  • Commercial Grade Deck: Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
  • Wider Stance: Additional operator platform width provides more room and comfort for the operator
  • SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
  • Premium Seat: A premium extra high-back seat with armrests.
  • Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
  • Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
  • Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers from other brands.
  • Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
  • Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
  • Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.


Specification:

  • Engine Manufacturer: Kawasaki FR691
  • Engine Horsepower: 23
  • Transmission: Hydro-Gear ZT-3100™
  • Fuel Capacity: 3 gal.
  • Ground Speed (FWD): Up to 8 mph
  • Cutting Width: 54"
  • Cutting Height: 1.5" to 4.5"
  • Deck Depth: 5"
  • Deck Lift: Foot Operated
  • Number of Blades: 3
  • Blade Tip Speed: 18,900
  • Spindles: Aluminum with 1" shaft and sealed ball bearings
  • Deck Engagement: Electric PTO Clutch
  • Deck Material: Fabricated 10 gauge
  • Spindle Mounts: Reinforced 11 gauge
  • IMPACT Trim Area: 11 gauge formed channel with rolled edge
  • Front Tire: 13 x 6.5
  • Drive Tire: 23 x 11-10 BigBite™
  • Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
  • Engine Warranty: 3 Year Warranty
  • Frame: 1.50" X 3" steel tubing
  • Front Axle: Fabricated with sealed ball bearings
  • Front Caster Wheel: Tapered roller bearings - grease-able
  • Front Caster Fork: Fabricated 3/8" steel
  • Weight (lbs): 678

Width Weight Height Length
0 Inch 678 Pounds 0 Inch 0 Inch
