Ironcraft 1200 Series Standard-Duty Cutters

IroncraftSKU: Ironcraft 1200 Series Standard-Duty Cutters-1204SCB
Price:
$1,750.00

IMPORTANT NOTE

Most agricultural tractor platforms, front-cut mowers, and snowplow systems are modular, with configurable components that are generally sold separately. This can include, but is not limited to front-end loaders, backhoes, buckets, PTO and hydraulic attachments, front-mounted mower decks, operator enclosures, comfort accessories, snowplow blades, electronic controllers, and associated mounting components.

Subsequently, a completed retail package may vary from the image, price, or online description, depending on the application and options selected. Because many modular system components are sourced from the manufacturer and stocked separately, the price listed may be for an individually SKU'd component and may not be inclusive of all pre-combined equipment as displayed, or all necessary components for proper functionality. Due to the wide variety of user applications, the online description may refer to common or optional system platforms or components that may not be included in the individual SKU's price.

For major equipment purchases, we earnestly recommend contacting us for configuration details and complete package pricing.

CUSTOM SHIPPING CHARGES (WHEN APPLICABLE)

Certain items (including most wheeled equipment), due to weight, size, shape, material, contents, fragility, or value may require your order's shipping charges to be custom calculated. In order to guarantee you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

Once your shipping charges are calculated, you will be contacted with your shipping quote, which, only after your approval, will be added to your order, and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded, and credited back according to your financial institution's policies.

If you require a quote before placing an order to claim your item, use the contact box (below the item description), or call any of our helpful locations. However, please note that equipment for sale cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

Pickup currently unavailable at Martin's Outdoor Power LLC - Geneva


Description

Description:

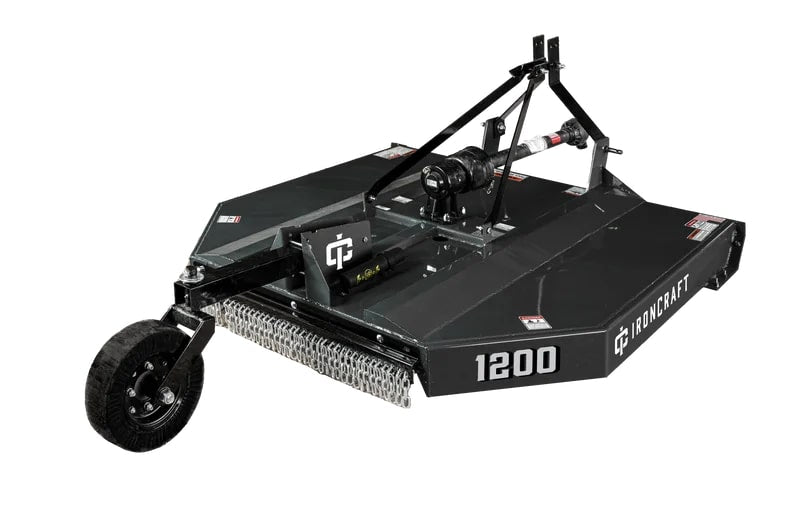

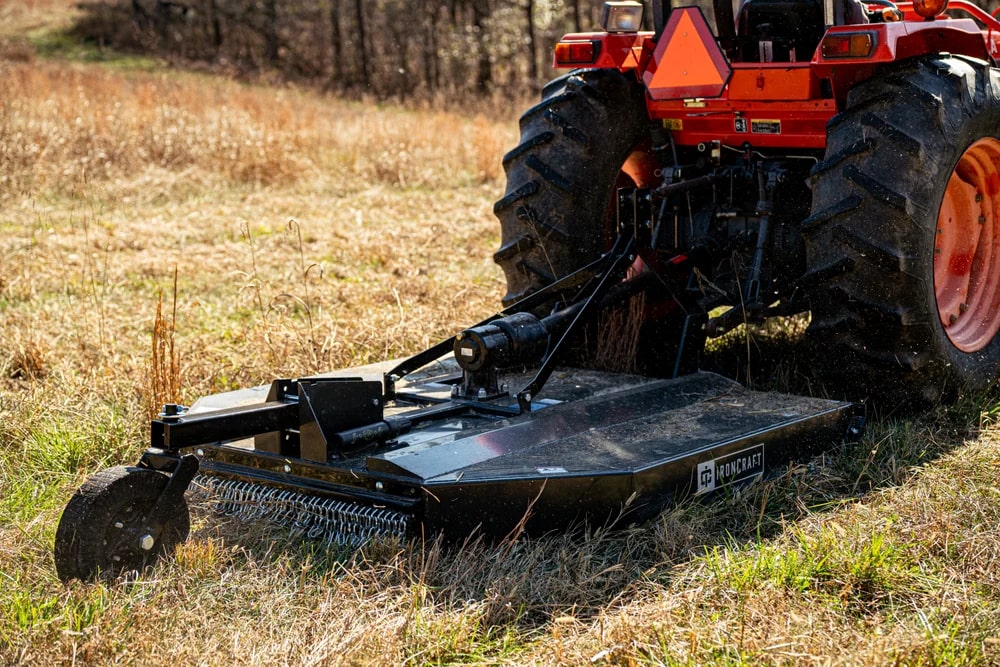

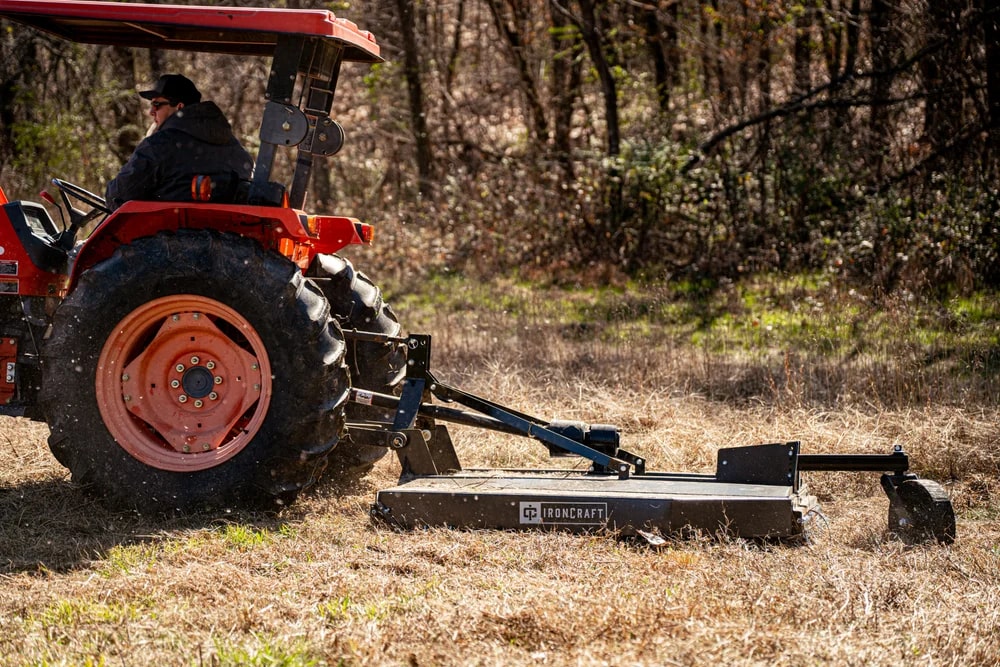

These rotary cutters are designed for standard-duty applications such as weeds, grass, and light brush up to 1.5” in diameter. These cutters are designed to work with 15 to 65 hp tractors, and are available in 48”, 60”, and 72” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A shear bolt through the input shaft or a slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields.

Front and rear chain and rubber discharge shields are available.

Specifications:

Rotary Cutter

  • Product Family: 1200 Series
  • Product: 1204
  • Description: 4' Standard Duty Cutter
  • RPM: 540
  • HP Required: 15-45 PTO
  • Working Width: 48"
  • Weight: 538 lbs
  • Cutting Capacity: 1-1/2"
  • Deck Thickness: 11 GA
  • Side Bands: 7"
  • Skid Shoes: Replaceable
  • PTO Drive Shaft: Series 4
  • Driveline Protection: Shear Pin or Slip Clutch
  • Blade Holder: Pan
  • Gearbox Rating: 55 HP
  • Blades: 1/2" x 3"
  • Wheel Type: Laminated
  • Hub Type: Greaseable
  • Hitch: Cat 1
  • Gearbox Warranty: 5-Year Limited
  • Guarding Options: Rubber Guards or Chains
  • FPM (Feet Per Minute): 12,232 FPM

Width Weight Height Length
0 Inch 538 Pounds 0 Inch 0 Inch
