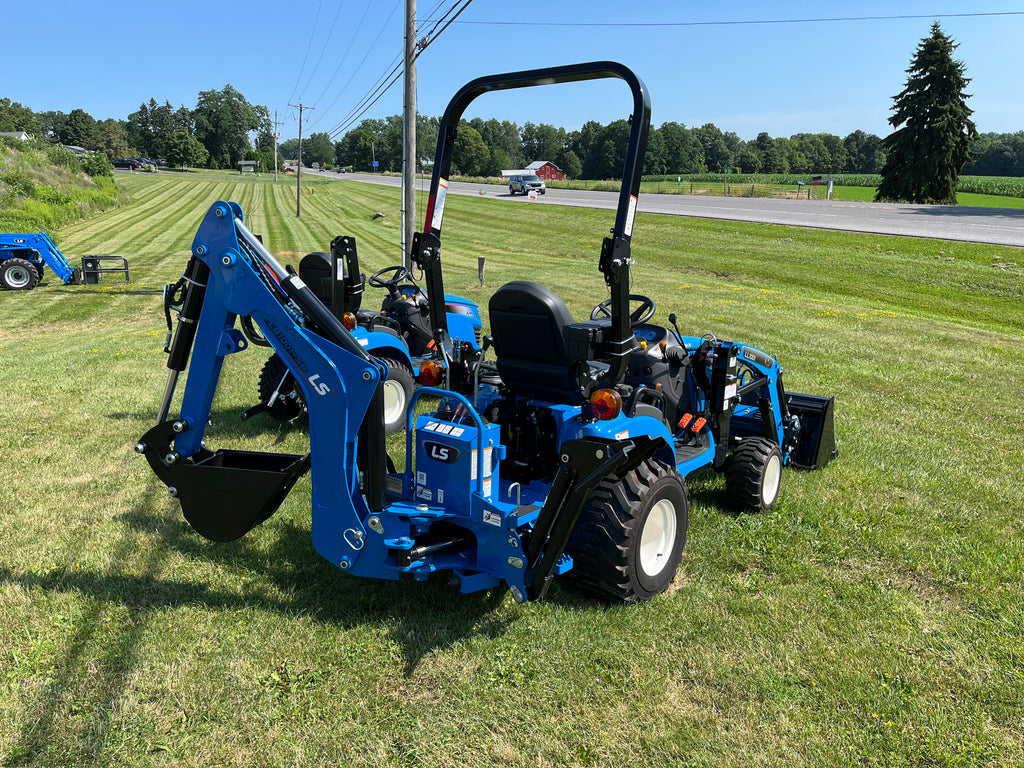

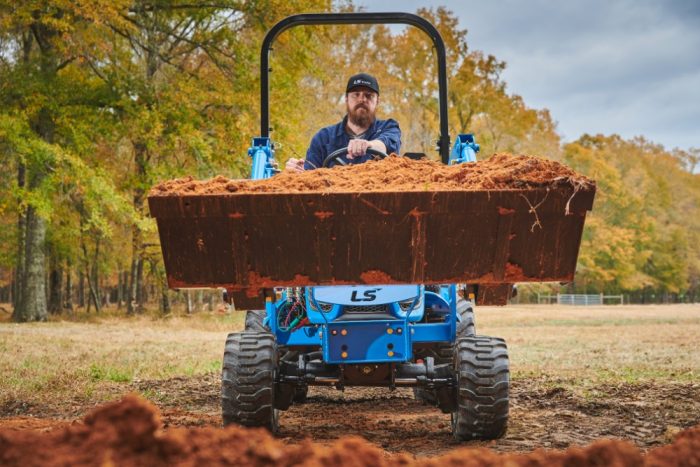

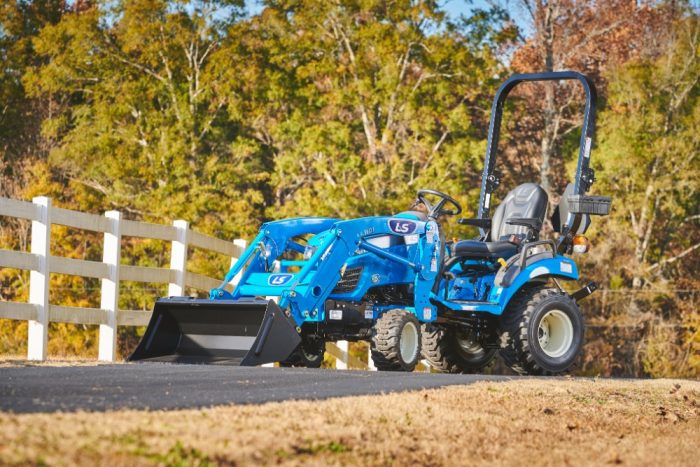

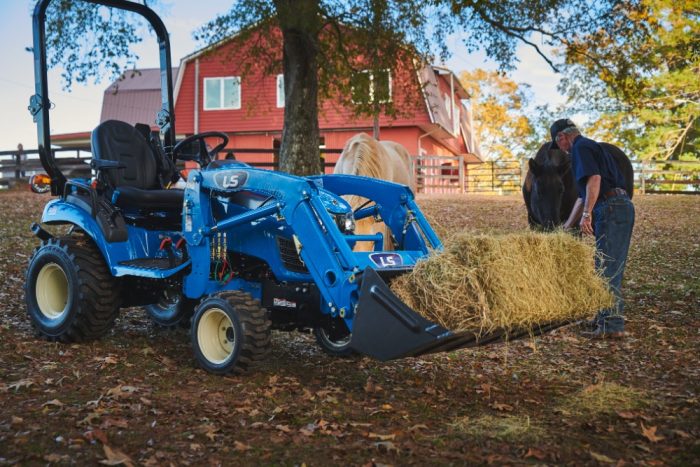

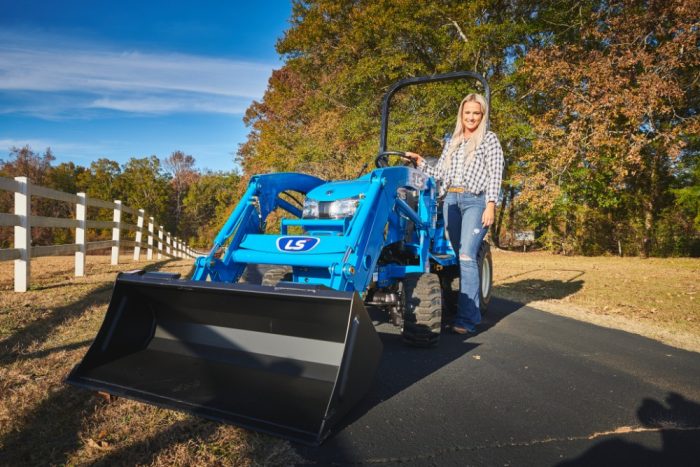

Description:

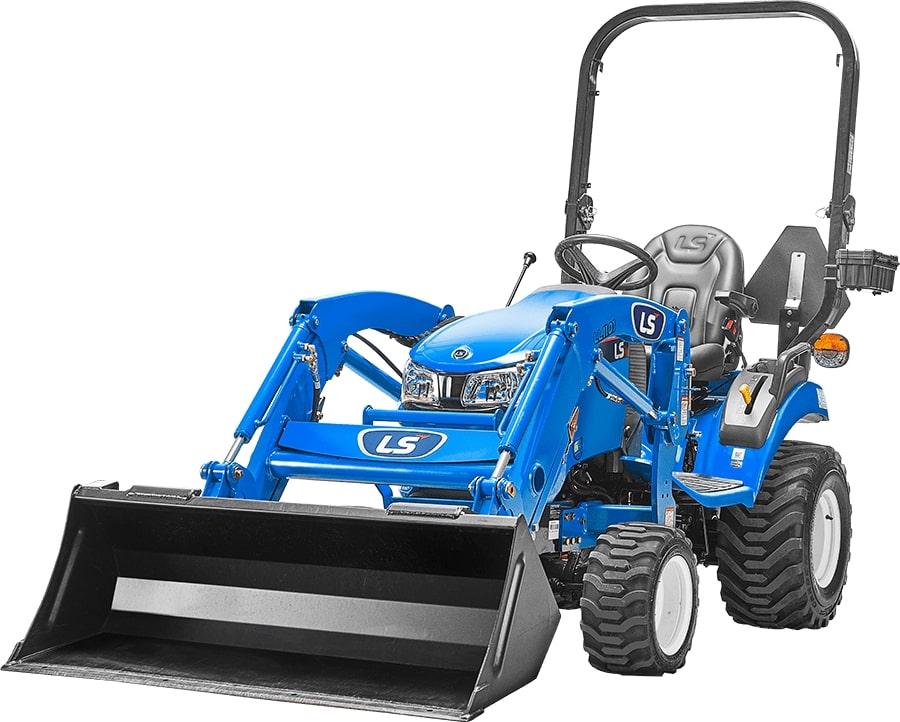

The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications.

Specifications:

Engine

• Type: 3-cylinder, Indirect-injection, Water-cooled
• Model (Tier 4): Yanmar 3TNV76F
• Engine HP (Gross): 21.5 HP
• PTO HP: 15.0 HP
• Rated Speed: 3,000 RPM
• Displacement: 68.0 cu in.
• Fuel Tank Capacity: 6.6 gal
• Alternator: 12V – 40 Amps

Drive Train

• Transmission: Hydrostatic Drive
• Speeds: 2 Ranges
• Brakes: Wet, Multi-Disc

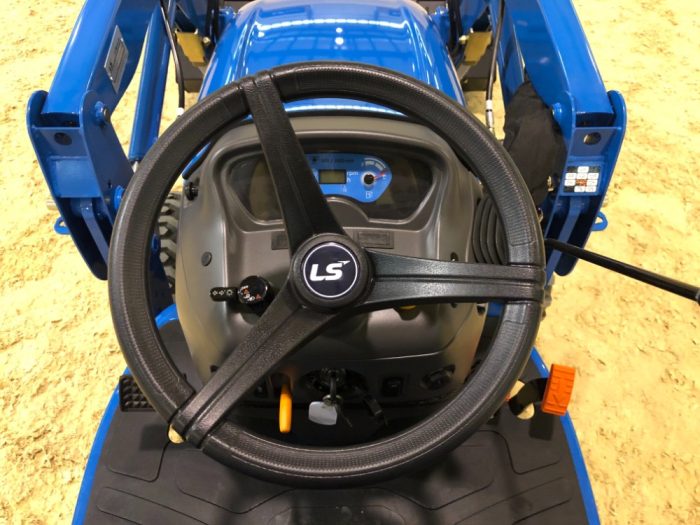

• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Mid PTO: Standard (2,500 RPM)
• Rear PTO: Standard (540 RPM)

Hydraulic System

• Implement Pump: 4.6 gpm
• Steering Pump: 2.1 gpm
• Total Flow: 6.7 gpm
• 3-Point Hitch Category: CAT 1
• Hitch Lift Capacity: 970 lbs (728 lbs @ 24”)
• Lift Control Type: Position

Dimensions

• Overall Length (Bumper to Link): 97 in.
• Wheelbase: 56 in.
• Min. Overall Width (with IND Tires): 47 in.
• Height to Top of ROPS: 87 in.

Tire Sizes

• Industrial Tires (Front/Rear): 18 x 18.5 – 10 / 26 x 12.0 – 12
• Versa Turf Tires (Front/Rear): 18 x 18.5 – 10 / 26 x 12.0 – 12

Weight

• Total Weight (without ballast): 1,433 lbs
