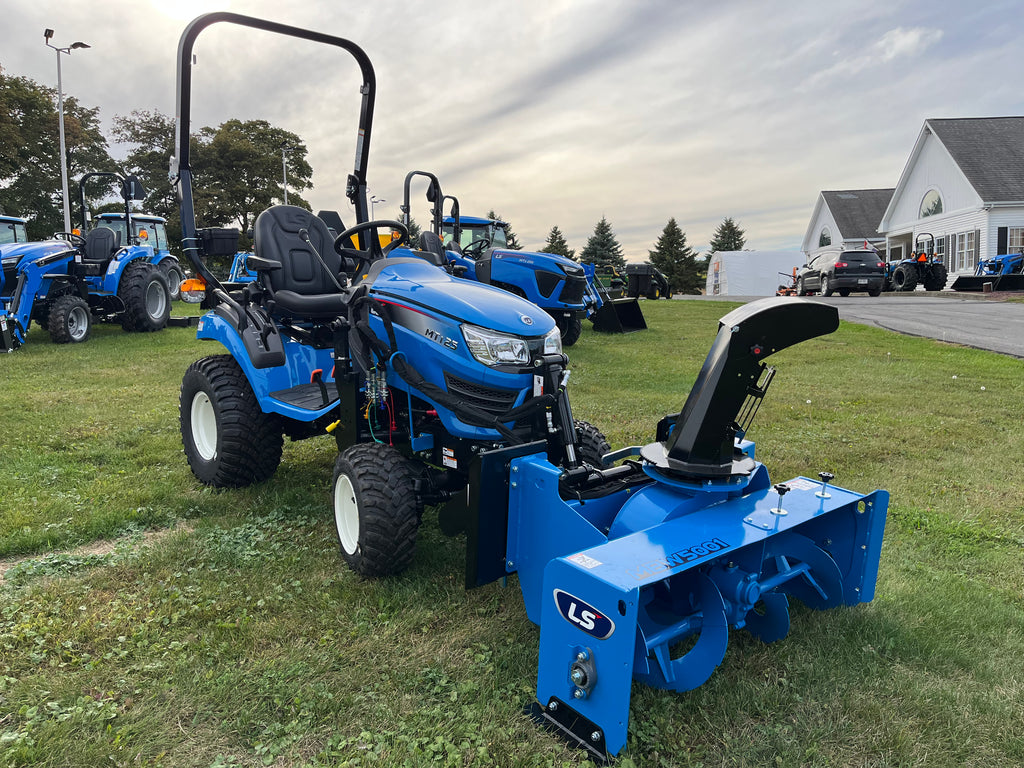

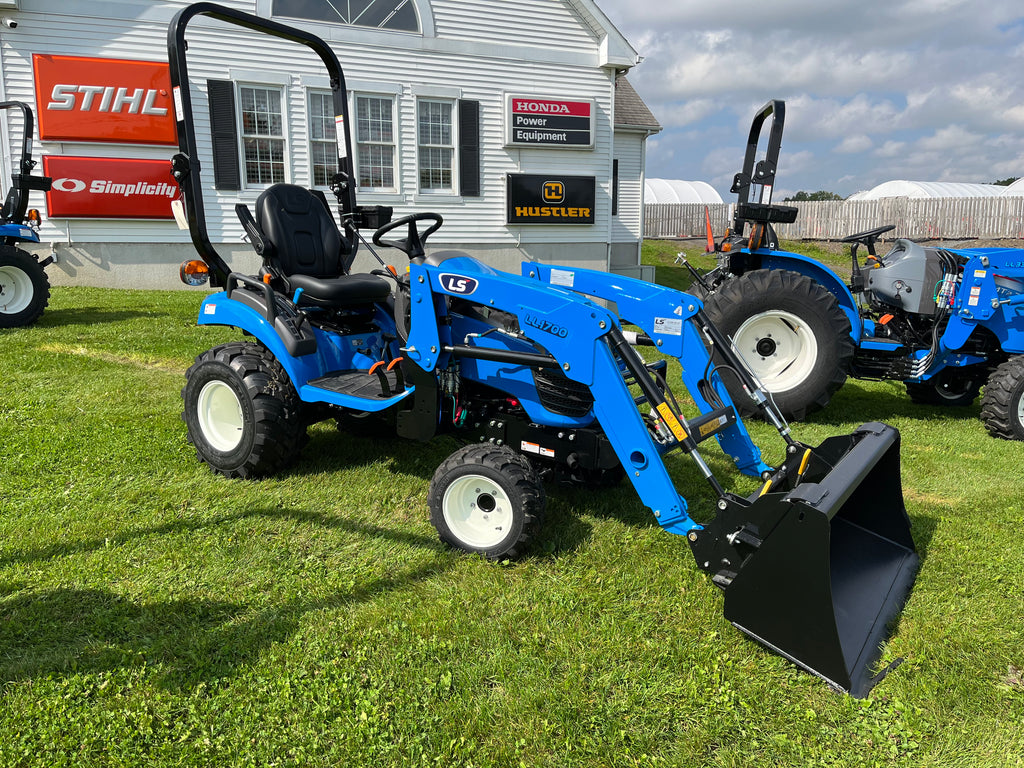

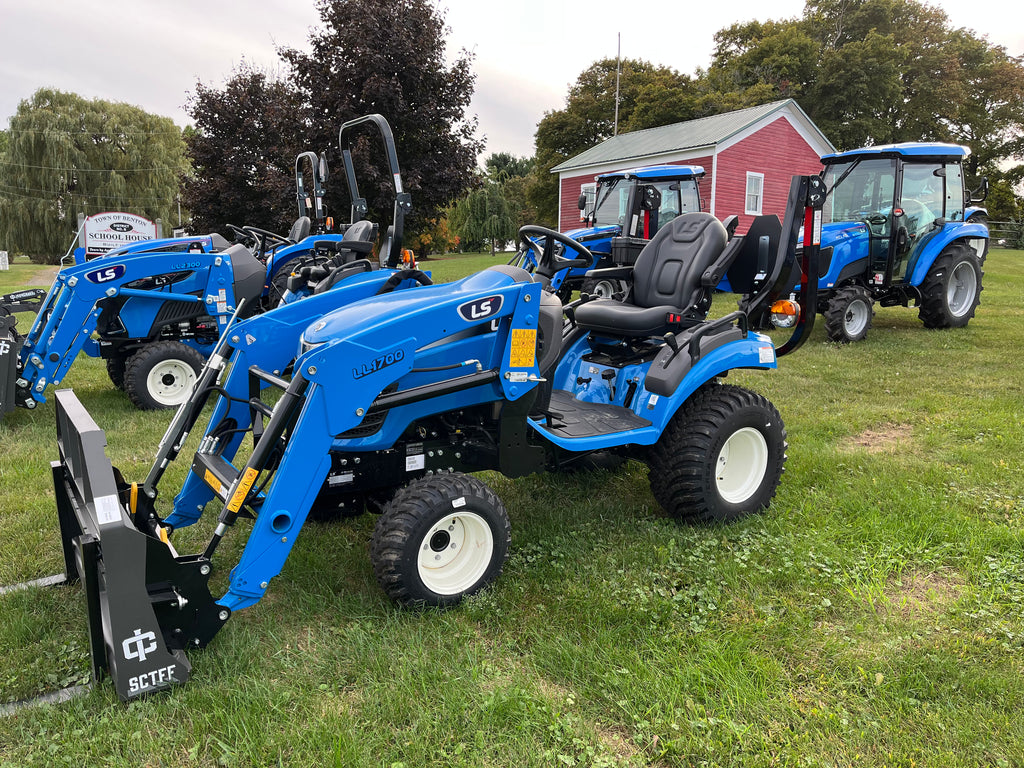

Description:

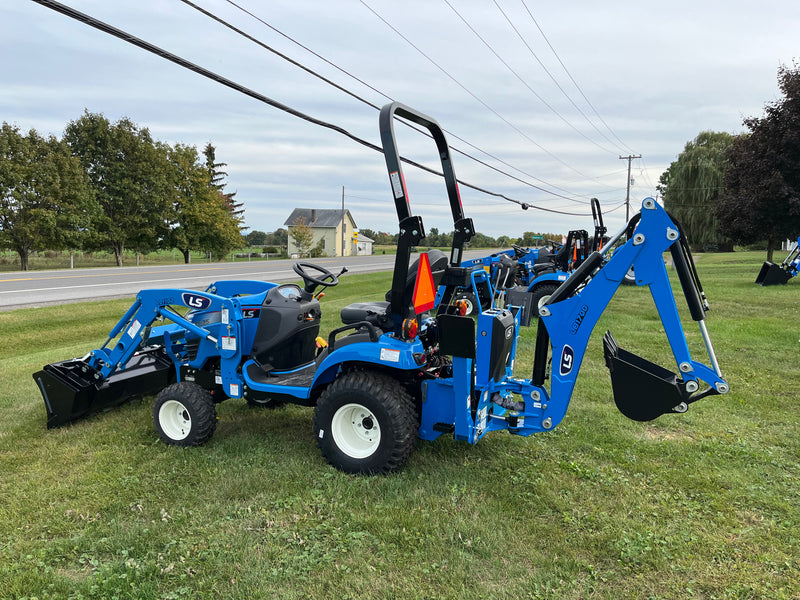

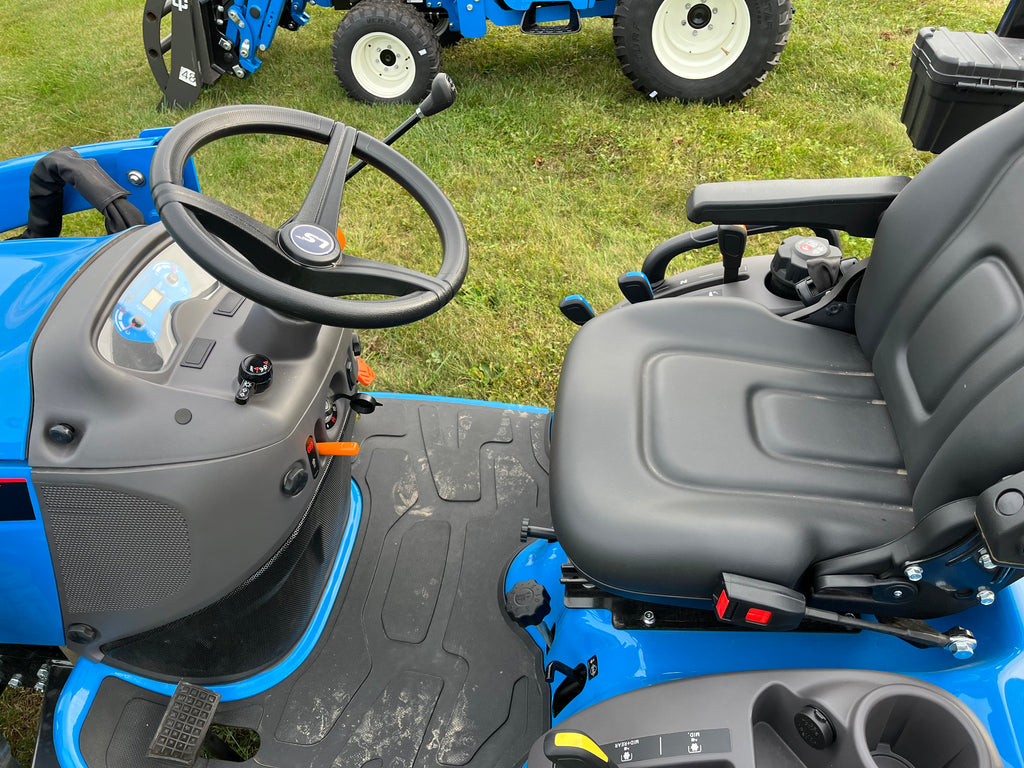

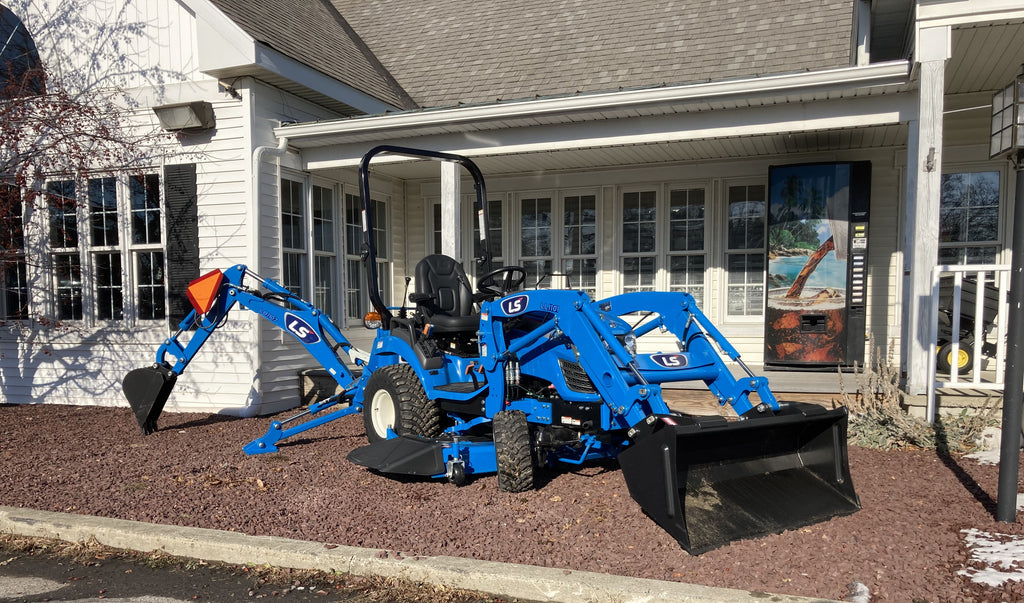

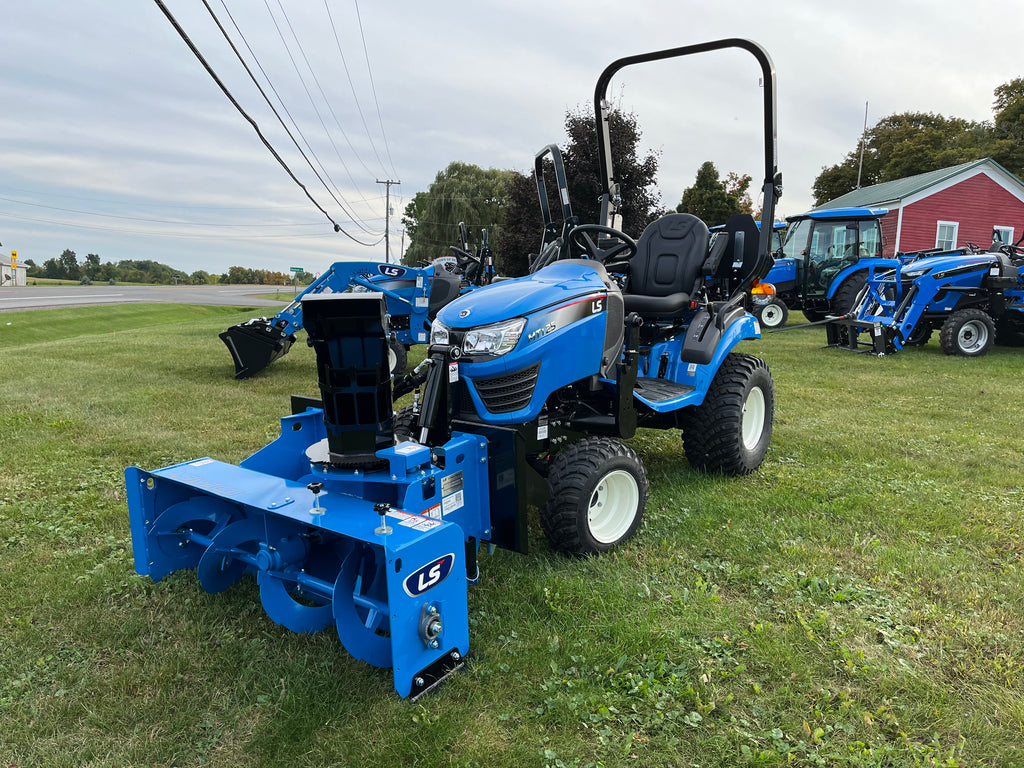

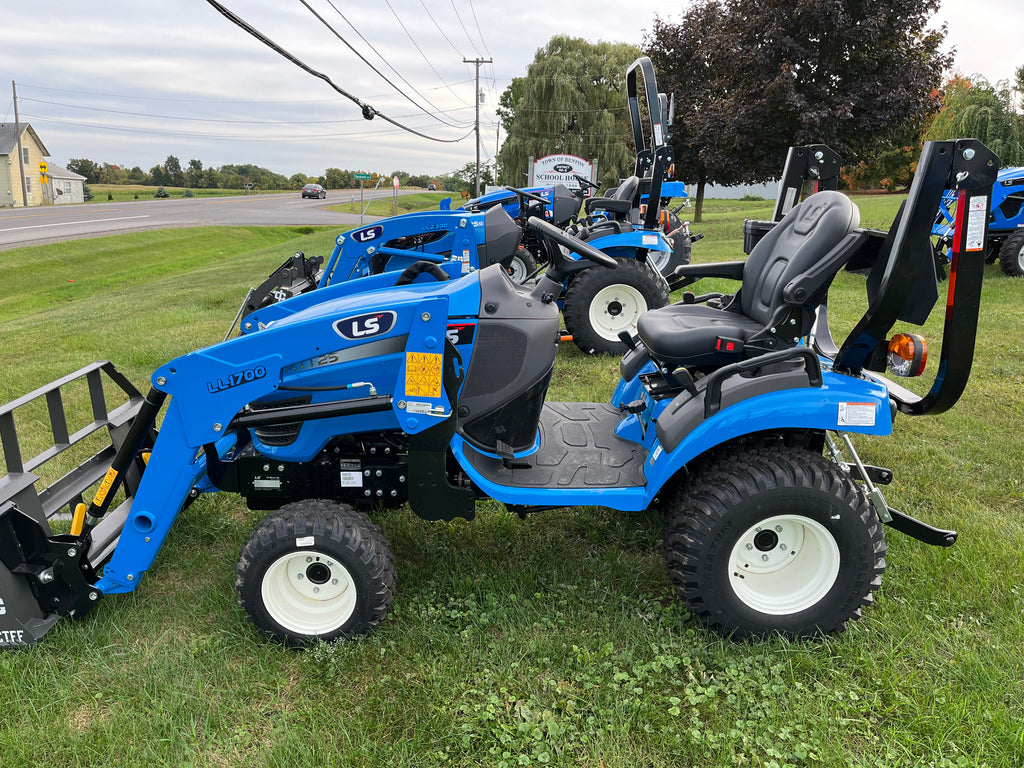

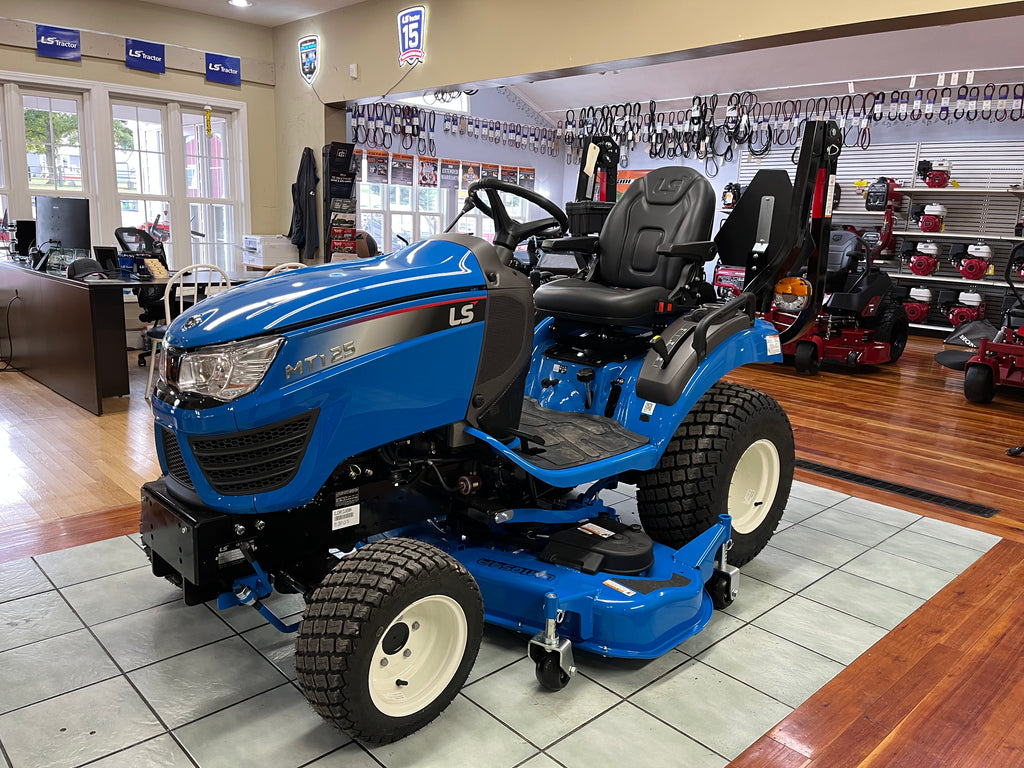

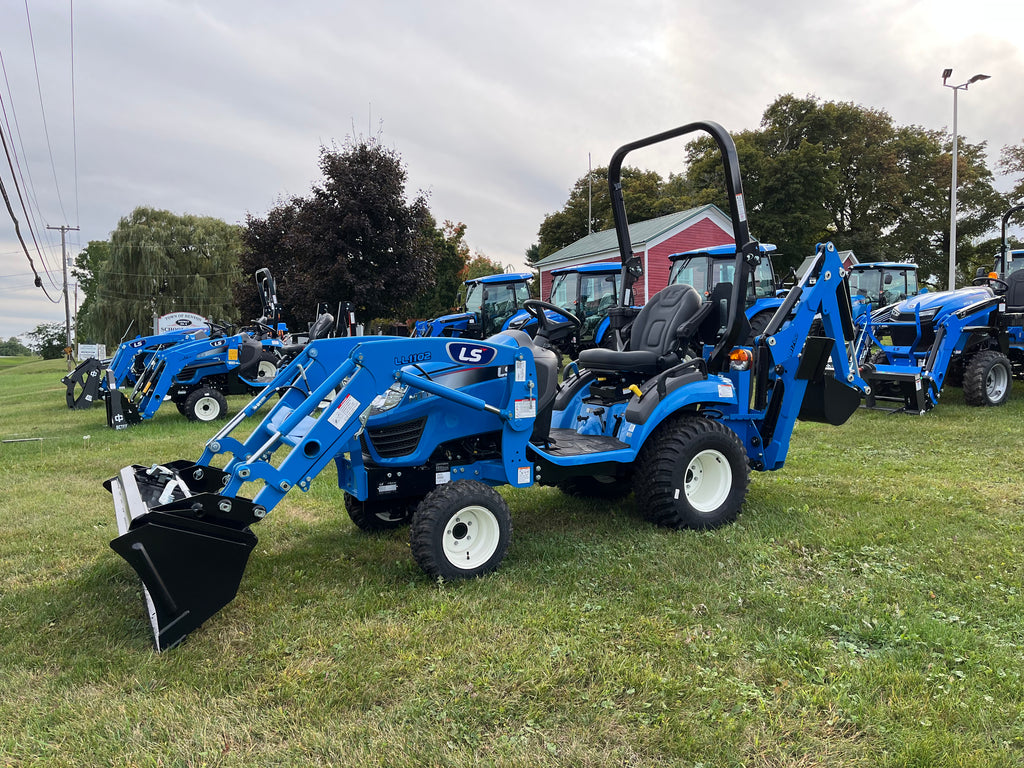

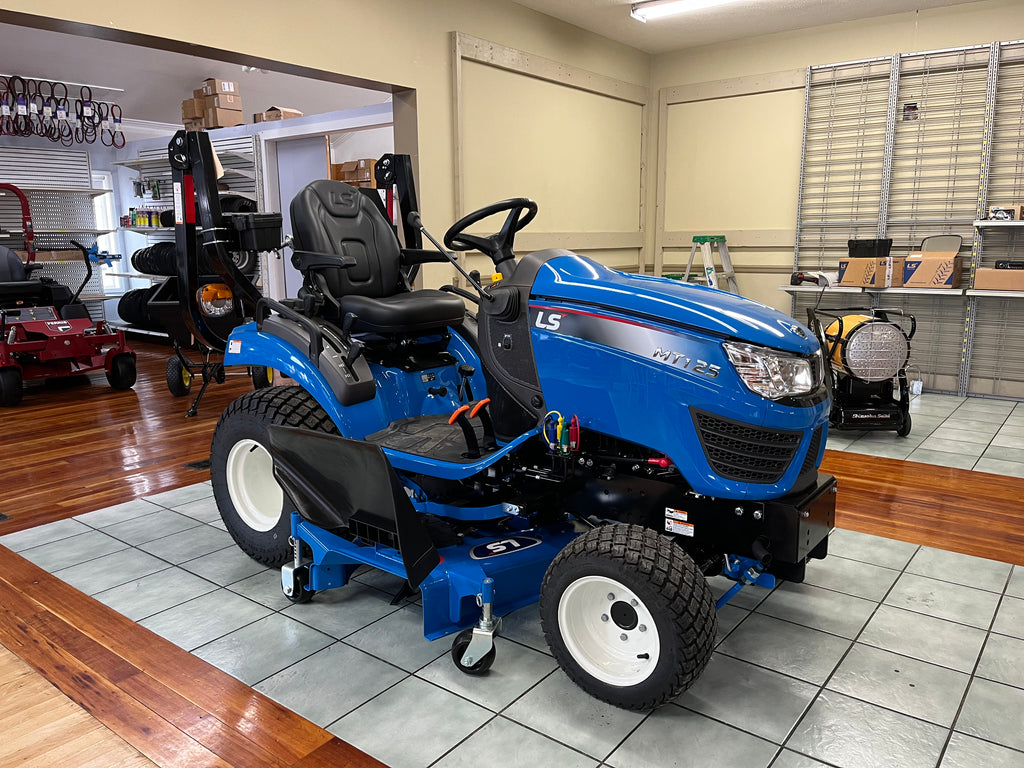

The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications.

Specifications:

Engine

• Type: 3-cylinder, Indirect-injection, Water-cooled
• Model (Tier 4): Yanmar 3TNV80F
• Engine HP (Gross): 24.7
• PTO HP: 17.2
• Rated Speed (RPM): 3,000
• Displacement (cu in.): 77.3
• Fuel Tank Capacity (gal): 6.6
• Alternator (V-A): 12V – 40

Drive Train

• Transmission: Hydrostatic Drive
• No. of Speeds: 2 Ranges
• Brakes: Wet, Multi-Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Mid PTO: Standard (2500 rpm)
• Rear PTO: Standard (540 rpm)

Hydraulic System

• Implement pump (gpm): 4.6
• Steering pump (gpm): 2.1
• Total flow (gpm): 6.7
• Category, 3 pt hitch: CAT 1
• Hitch lift Capacity (lbs.): 970 (728 @ 24”)
• Lift control type: Position

Dimension

• Overall length (Bumper to link, in.): 97
• Wheelbase (in.): 56
• Min. overall width with IND tires (in.): 47
• Height to top of ROPS (in.): 87

Tire Size

• Industrial Front/Rear: 18×18.5 – 10 / 26×12.0 – 12
• Versa Turf Front/Rear: 18×18.5 – 10 / 26×12.0 – 12

Weight

• Total weight without ballast (lbs.): 1,444

Width	Weight	Height	Length
0 Inch	1444 Pounds	0 Inch	0 Inch
