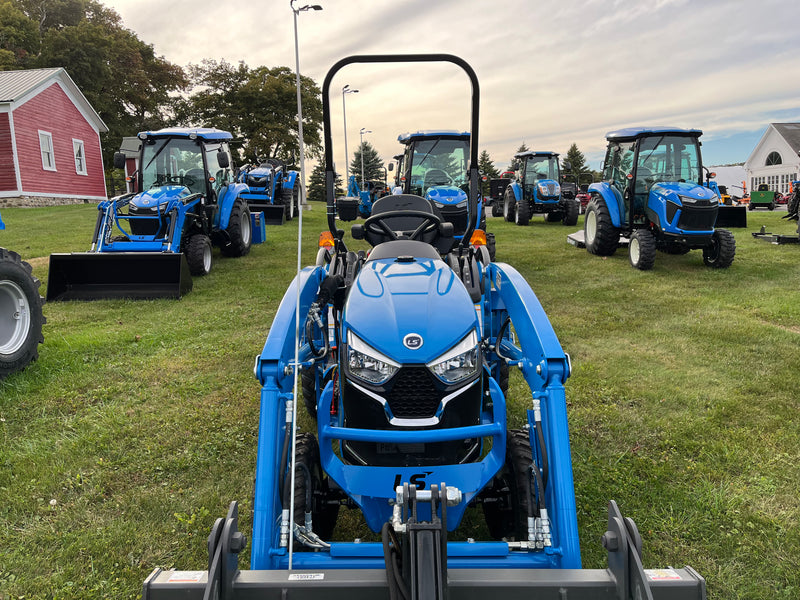

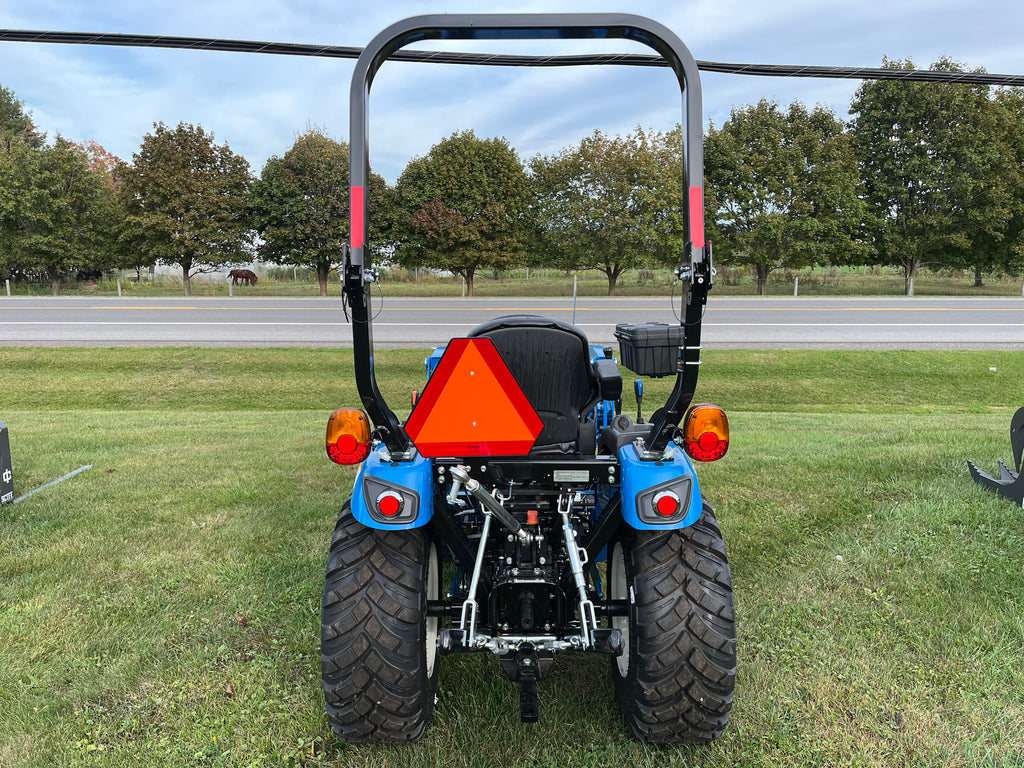

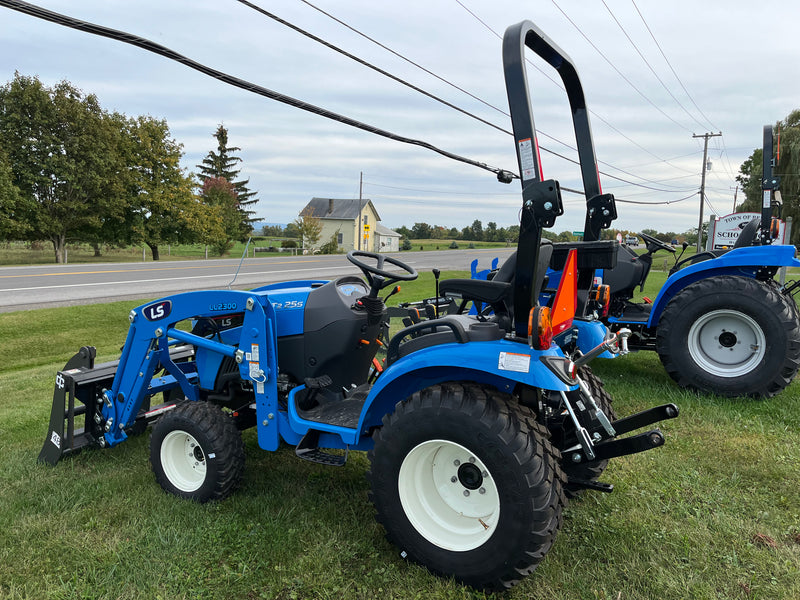

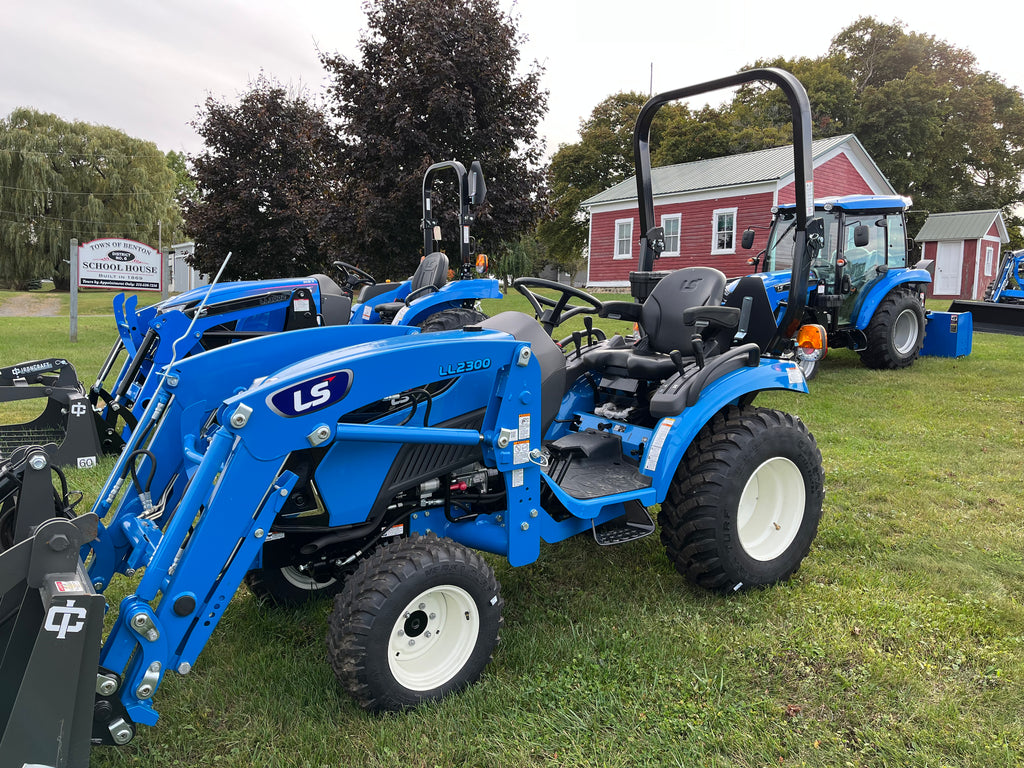

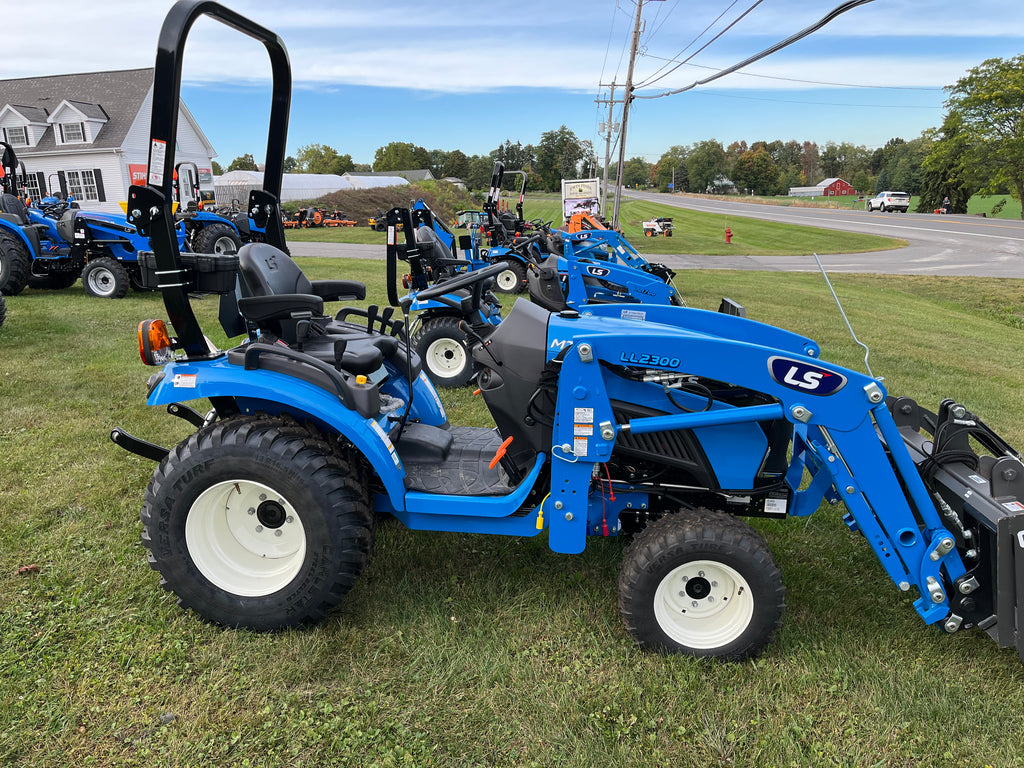

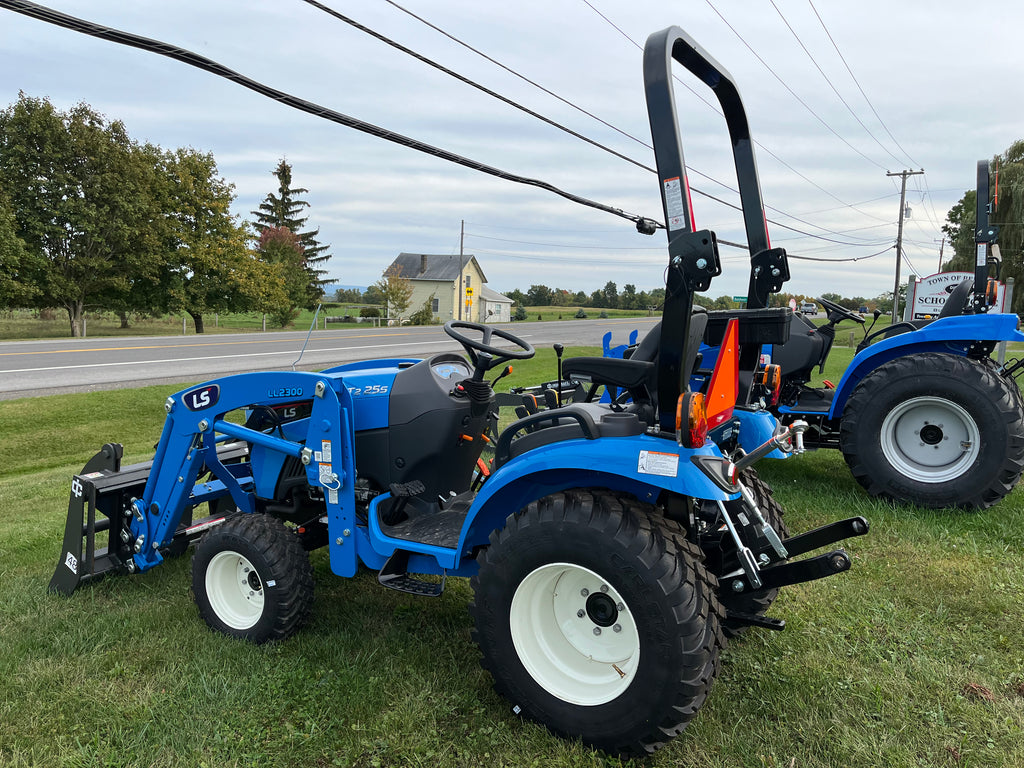

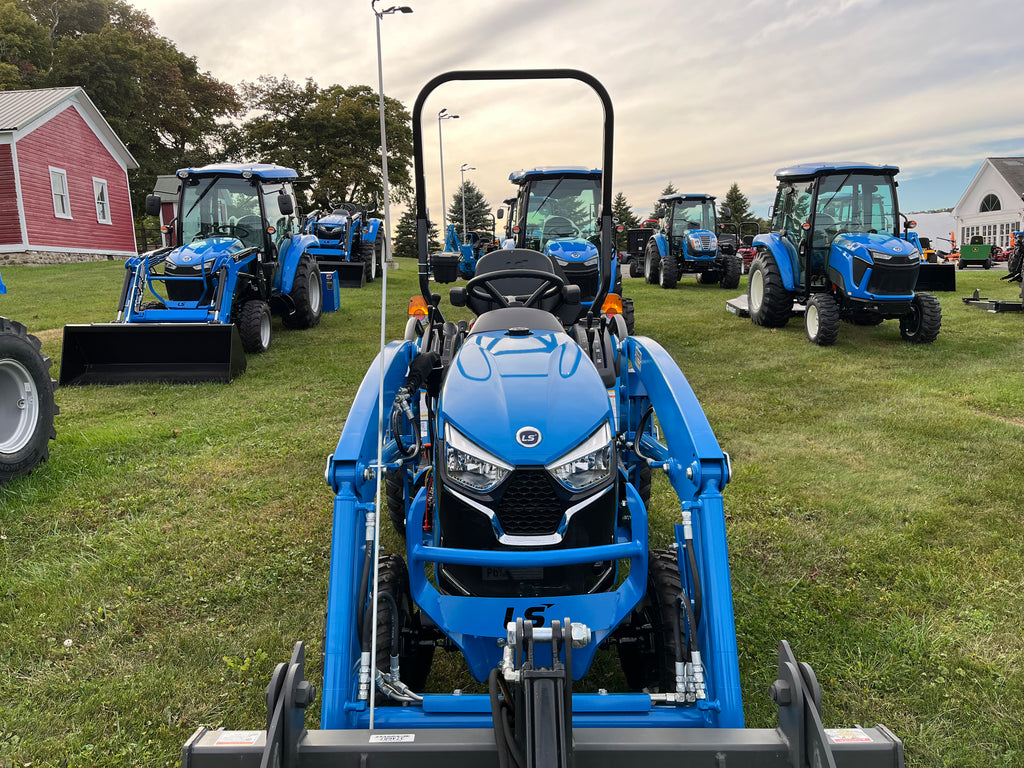

Description:

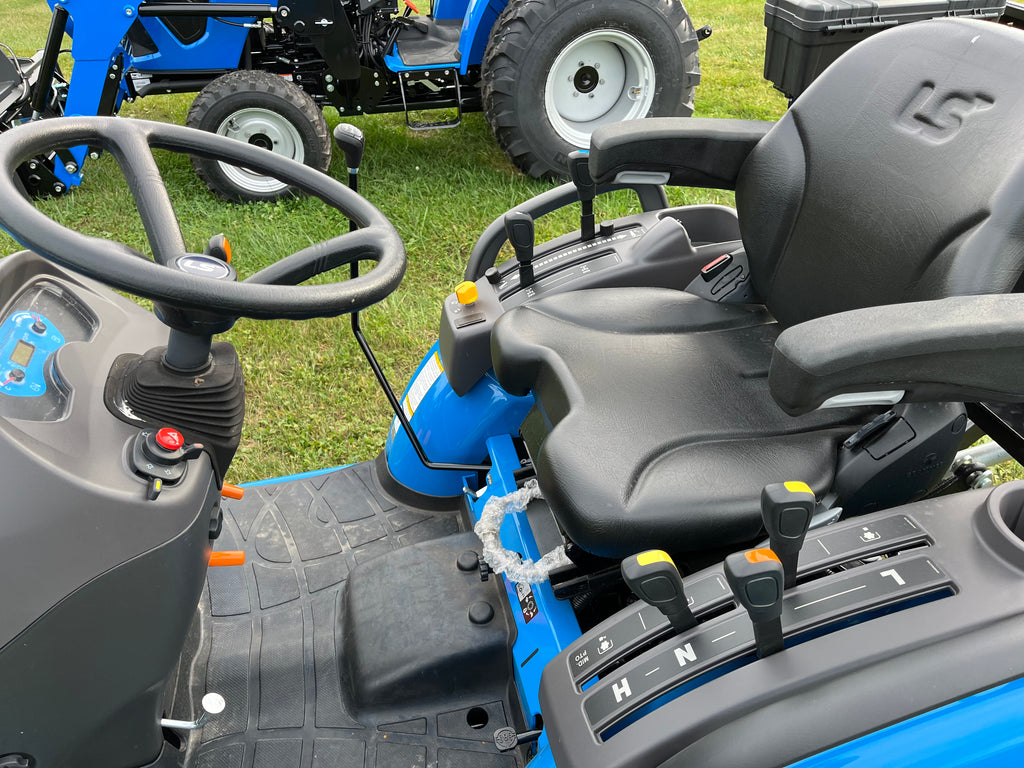

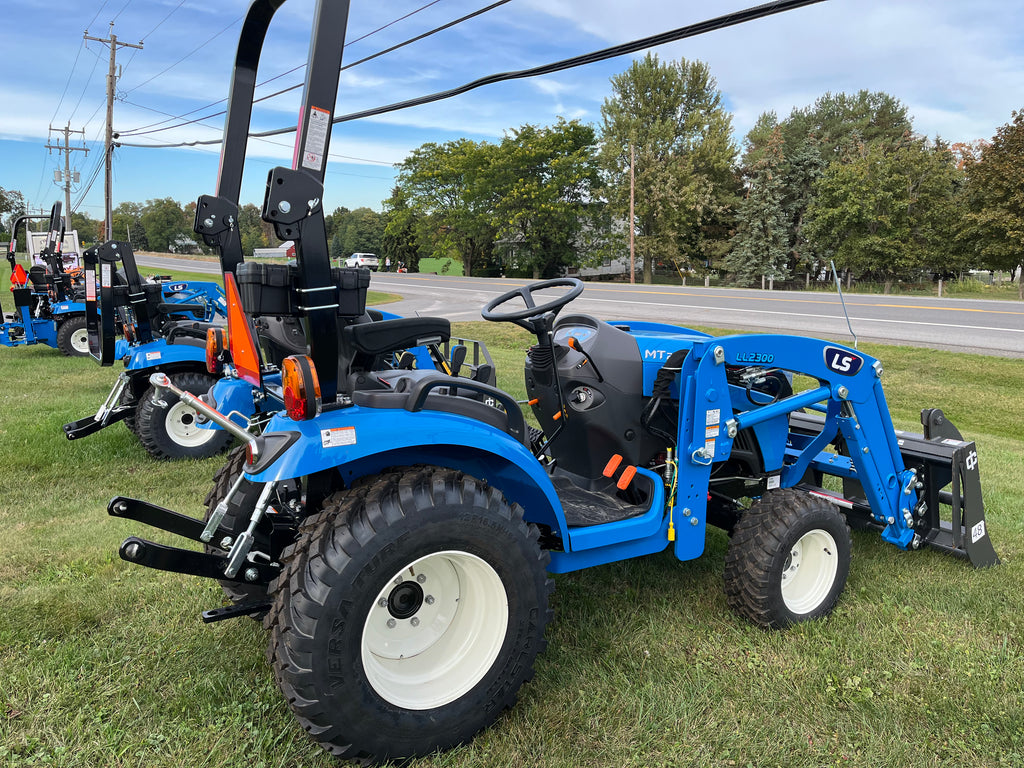

The MT2s provides a premium level compact tractor to customers wishing to have a high-performing and a highly featured compact tractor. The multitude of standard premium features include premium seat, two pedal hydrostatic transmission, flat operator platform, high- capacity loader and three-point hitch.

Specifications:

Engine

• Type: 3-Cylinder IDI (Indirect Injection Diesel)
• Model (Tier 4): Yanmar 3TNV80F-ZXKLST
• Engine Power (Gross): 24.7 HP
• PTO Power: 19.3 HP
• Rated Speed: 2,800 RPM
• Displacement: 77.3 cu. in.
• Fuel Tank Capacity: 6.79 gallons
• Alternator: 12 V, 40 A

Drive Train

• Transmission Type: Hydrostatic (HST)
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi Disc
• Steering: Hydrostatic Power Steering

PTO (Power Take-Off)

• Type: Independent
• Rear PTO Speed: 540 RPM
• Mid PTO Speed (Optional): 2,500 RPM

Hydraulic System

• Control System: Position control
• Implement Pump Flow: 5.6 gallons per minute (gpm)
• Steering Pump Flow: 3.7 gpm
• Total Flow: 9.3 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 1,896 lbs
• Remote Valves: 1 pair (optional)

Dimensions

• Overall Length (Frame to Link): 111.9 inches
• Wheelbase: 63.4 inches
• Overall Width (with Tires): 48.7 inches
• Height to Top of ROPS: 86.4 inches

Tire Sizes

• Industrial (Front/Rear): 23 x 8.5 – 12 / 12 – 16.5
• Versa Turf (Front/Rear): 12 x 16.5 / 23 x 8.5

Weight

• Total Weight (without ballast): 1,764 lbs
