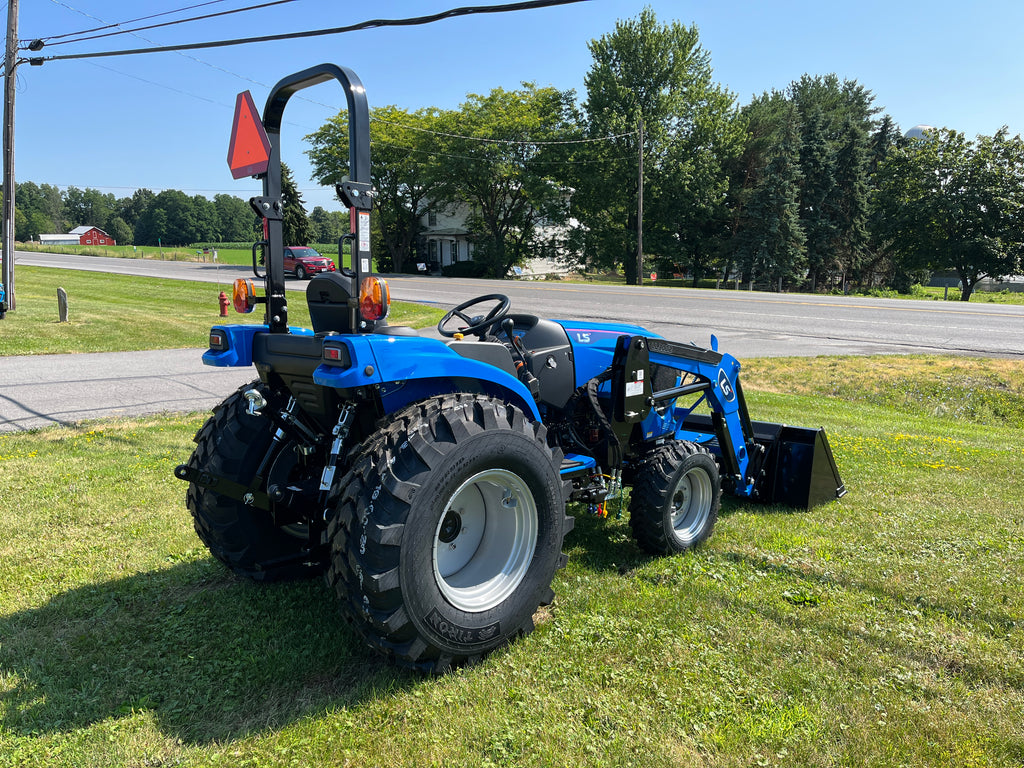

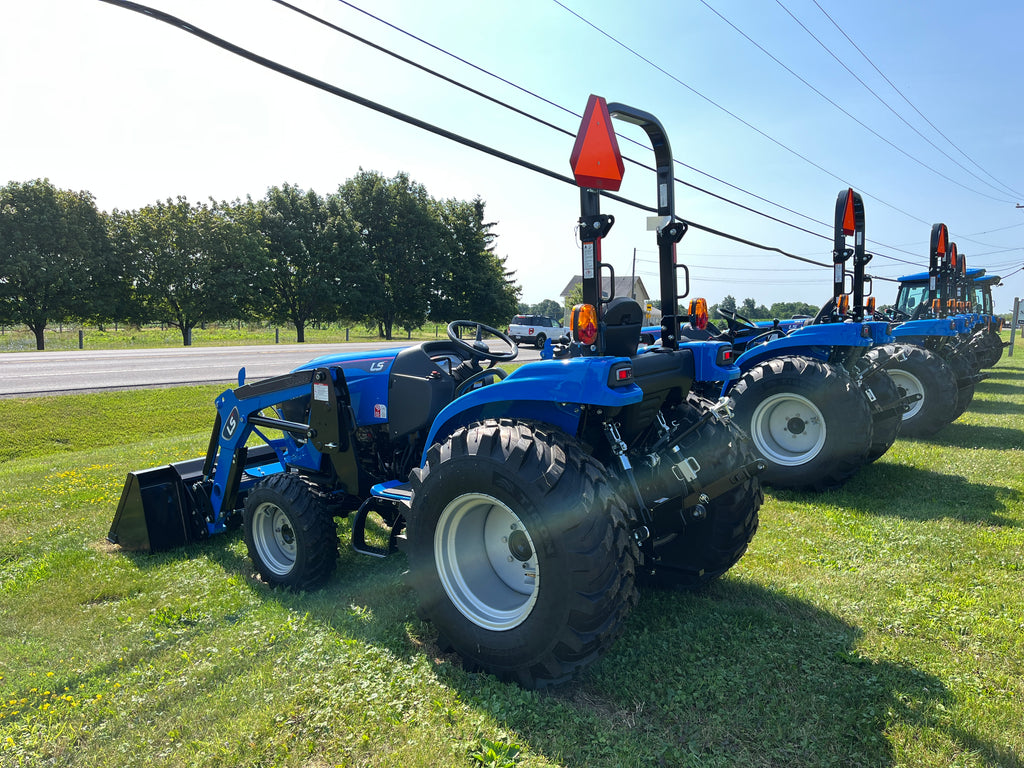

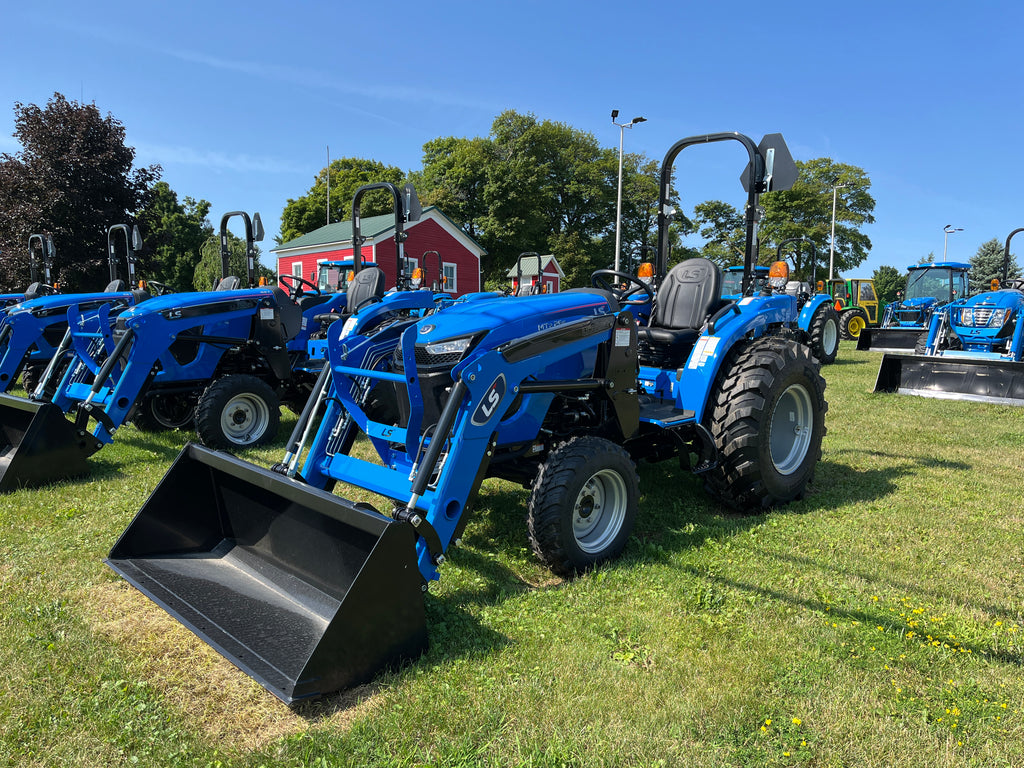

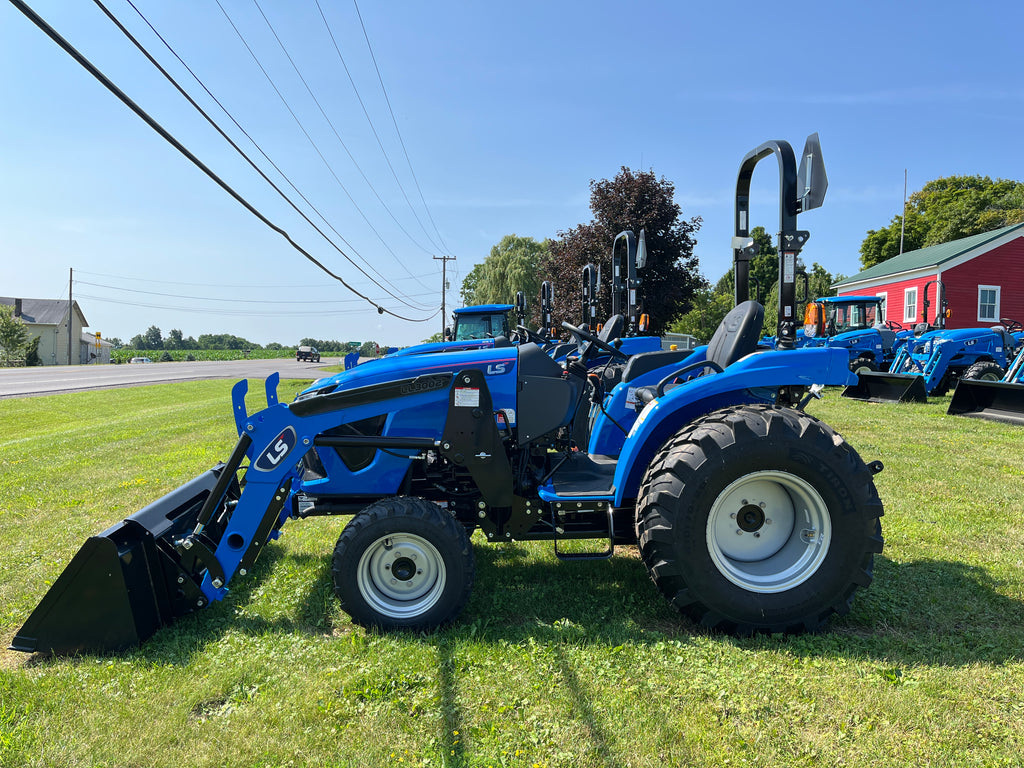

LS TractorSKU: LS Tractor MT226E – 24.6HP-MT226E

Contact for package options, pricing, and availability.

Price:
$21,750.00
Stock:
Sold out

Pickup currently unavailable at Martin's Outdoor Power LLC - Geneva



PRICE, IMAGES, & DESCRIPTION

Agricultural and landscaping equipment is often sold in modular configurations or with factory-installed attachments, which are sometimes stocked, listed, and invoiced separately. (For example: Tractors and bucket loaders, or front-cut mowers and decks, etc.)

For configurable models, the price displayed may not be inclusive of all pre-combined components as displayed, or all necessary components for proper functionality.

Descriptions may include important details and specifications that refer to common options or add-ons that may not be included.

For major equipment purchases, we earnestly recommend contacting us for configuration details and to request a purchase or financing quote.

Call us or use the quote form below the description.

CUSTOM SHIPPING CHARGES

Most wheeled equipment and large items will require your order's shipping charges to be custom calculated.

To quote you the best available rates, your shipment will be rate-shopped with multiple carriers using your shipment's unique weight, dimensions, freight class, value, and distance to destination.

After you approve your quote, the freight charges will be added to your order and must be paid before your item is shipped. Orders cancelled due to shipping costs will be promptly refunded.

You may request a shipping quote before purchase, and we will assist you with your order.

Unpaid equipment cannot be held for quoting purposes. All items are sold on a first-come-first-served basis.

×

Description

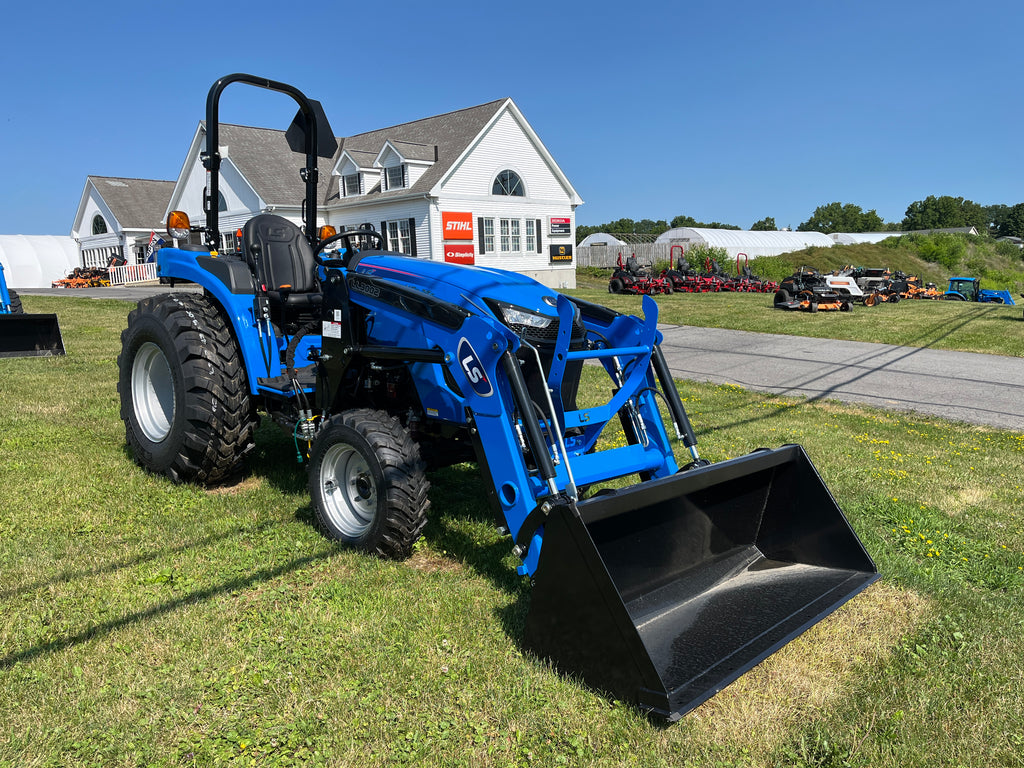

FRONT END LOADER AVAILABLE!

Specifications:

ENGINE:

  • Type: 3 Cylinder, Liquid-cooled, Diesel, Naturally Aspirated (NA), Indirect Injection (IDI)
  • Model (Tier 4): MHI
  • Gross Engine HP: 24.6 hp
  • PTO HP: 19.2 hp
  • Rated Speed (RPM): 2,500 RPM
  • Displacement: 80.4 cubic inches
  • Fuel Tank Capacity: 10.6 gallons
  • Alternator: 12V – 50 Amps

DRIVE TRAIN:

  • Transmission Type: Synchro Shuttle
  • Number of Speeds: F12 X R12 (12 Forward, 12 Reverse)
  • Brakes: Wet, Multi-disc
  • Steering: Hydrostatic Power Steering

PTO (Power Take-Off):

  • Type: Independent
  • Rear PTO Speed: 540 RPM (Standard)

HYDRAULIC SYSTEM:

  • Control System: Position
  • Implement Pump Flow: 7.9 gallons per minute (gpm)
  • Steering Pump Flow: 4.6 gpm
  • Total Flow: 12.5 gpm
  • 3-Point Hitch Category: Category I (CAT I)
  • Hitch Lift Capacity at Hitch End: 1,808 lbs
  • Remote Valves: Optional

DIMENSIONS:

  • Overall Length (Frame to Link): 119 inches
  • Overall Width with Tires: 66 inches
  • Wheelbase: 66 inches
  • Height to Top: 95 inches

TIRE SIZES:

  • Agricultural (Ag) Front / Rear: 7 – 14 / 11.2 – 24
  • Industrial (IND) Front / Rear: 27X8.50-15 / 43X16.00-20
  • Versa Turf (VT) Front / Rear: 27X8.50-15 / 43X16.00-20
  • Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT:

  • Total Weight without Ballast: 2,985 lbs


Width Weight Height Length
  2985 Pounds   0 Inch
