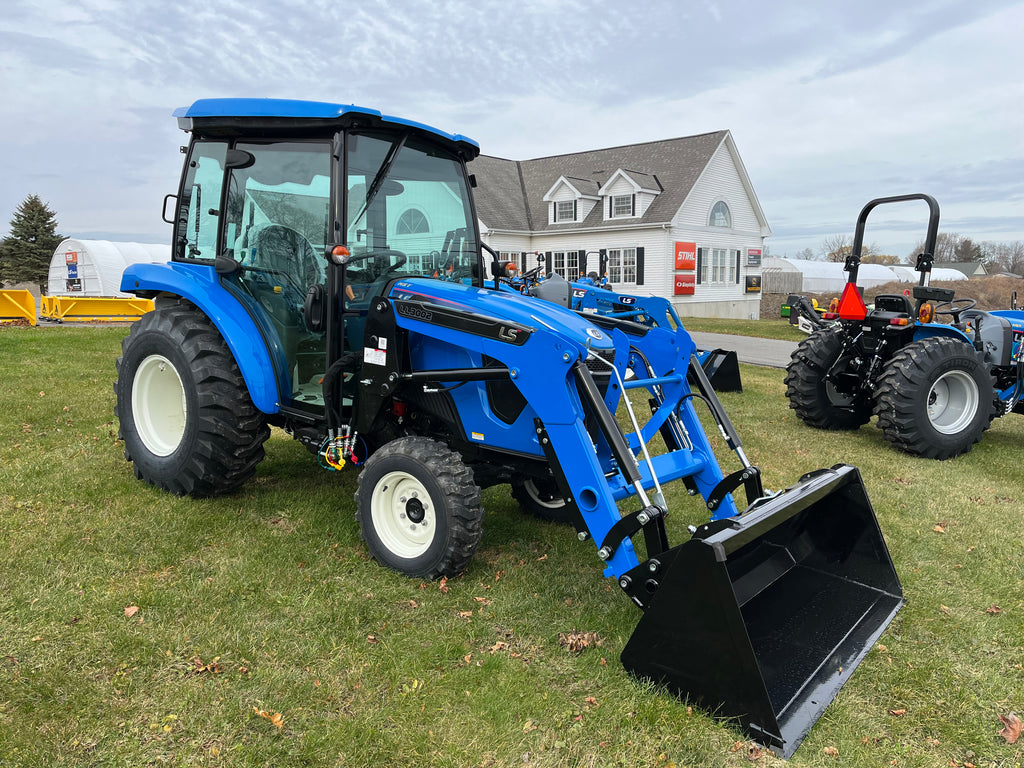

Description:

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
• Much improved seat comfortability
• Cruise control
• Factory A/C cab available in a 25HP tractor
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
• Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).

Specifications:

Engine

• Type: 3 Cylinder, Liquid-cooled, Diesel, NA, DI
• Model (Tier 4): YANMAR
• Engine HP (Gross): 24.4
• PTO HP: 19
• Rated Speed (RPM): 2,400
• Displacement: 100.2 cu. in.
• Fuel Tank Capacity: 11.4 gal
• Alternator: 12V – 55 Amps

Drive Train

• Transmission Type: HST
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear PTO: Standard (540 rpm)

Hydraulic System

• Control System: Position
• Implement Pump: 6.1 gpm
• Steering Pump: 4.6 gpm
• Total Flow: 10.7 gpm
• Category, 3 pt Hitch: CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: 1 Pair

Dimensions

• Overall Length (Frame to Link): 125 in
• Overall Width with Tires: 66 in
• Wheelbase: 69 in
• Height to Top: 90 in

Tire Size

• Ag Front/Rear: 7 – 14 / 11.2 – 24
• Industrial Front/Rear: 27X8.50-15 / 43X16.00-20
• Turf Front/Rear: 25X8.50-14 / 41X14.00-20

Weight

• Total Weight Without Ballast: 3,609 lbs
