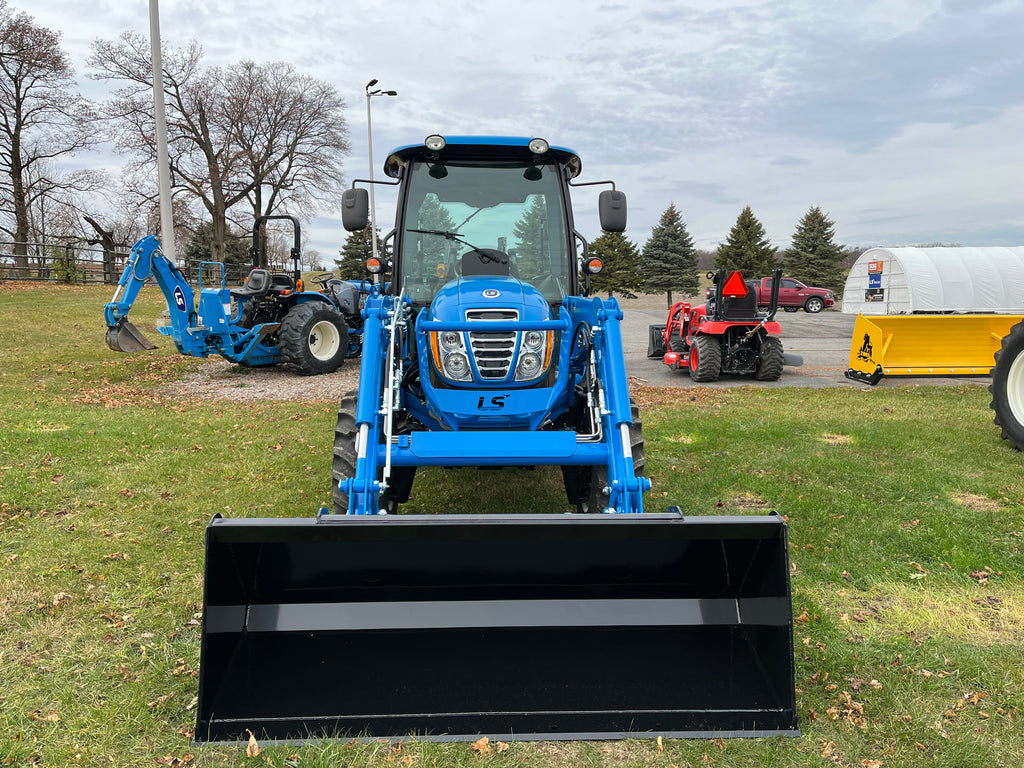

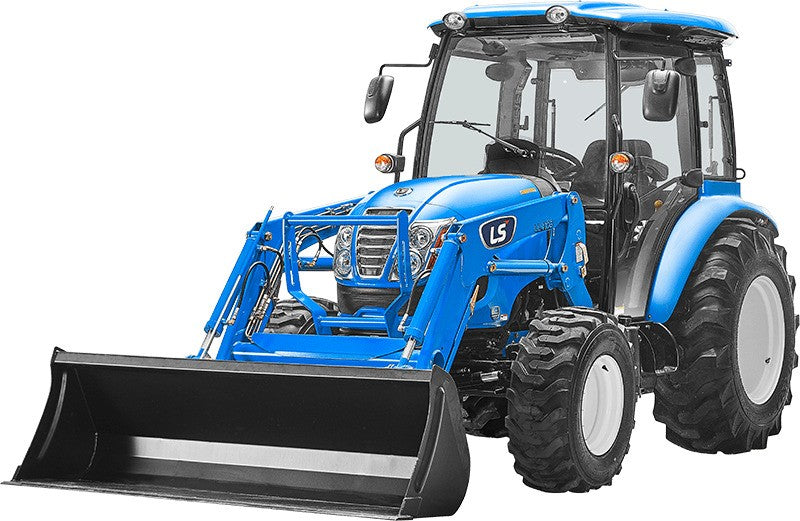

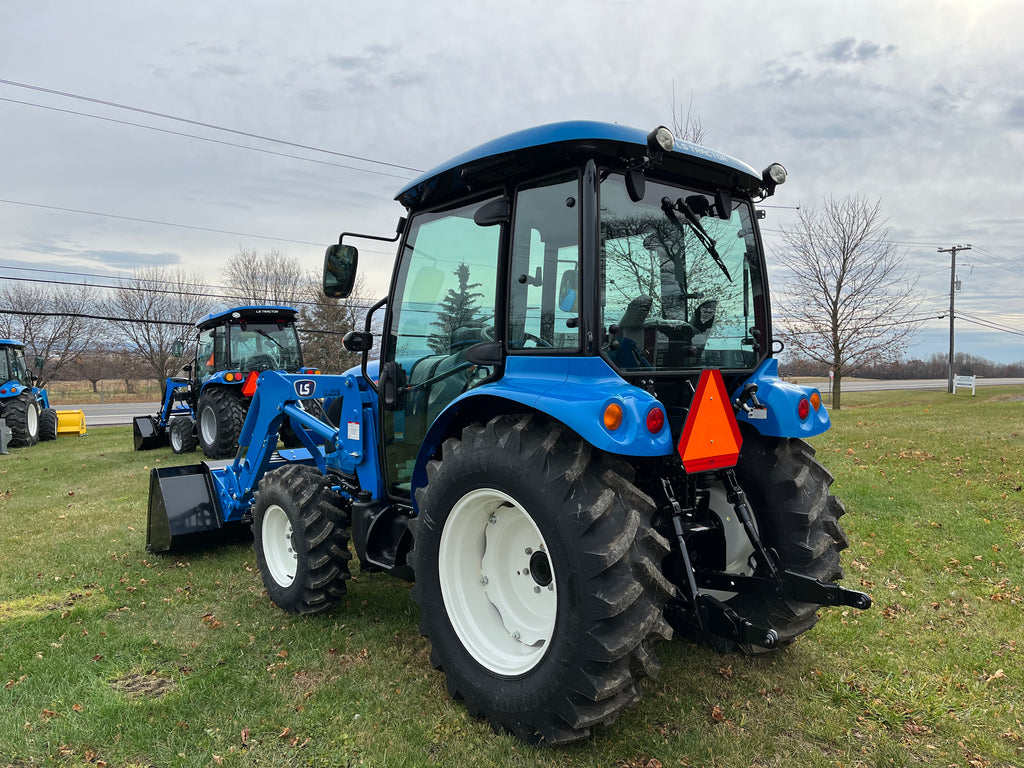

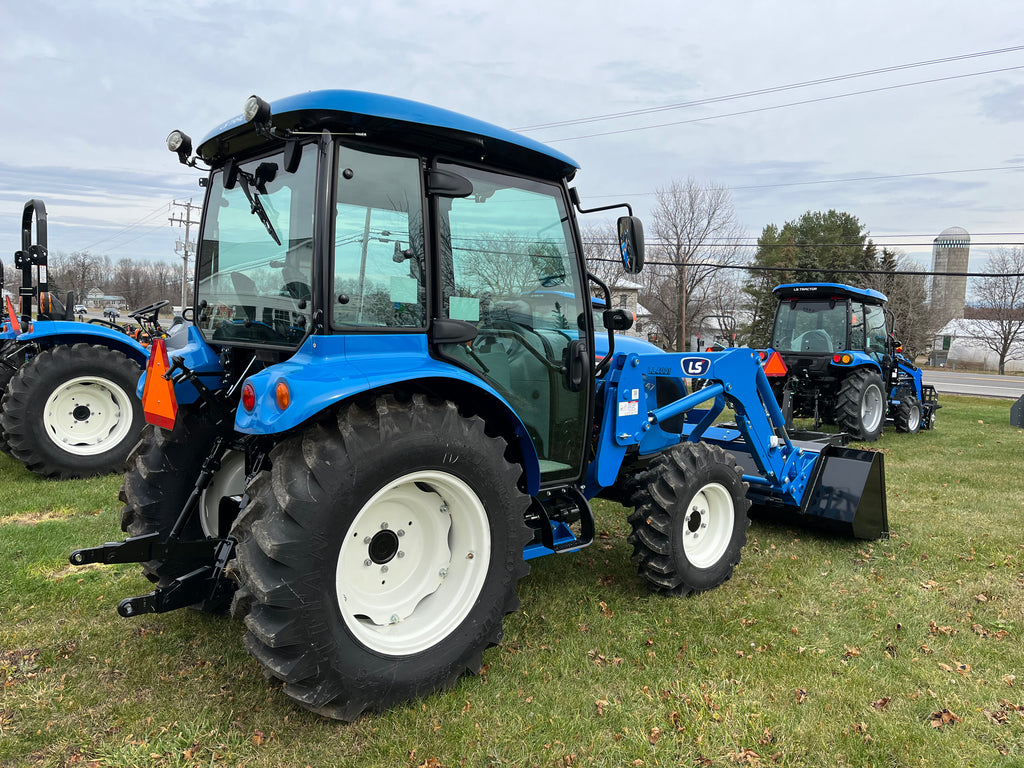

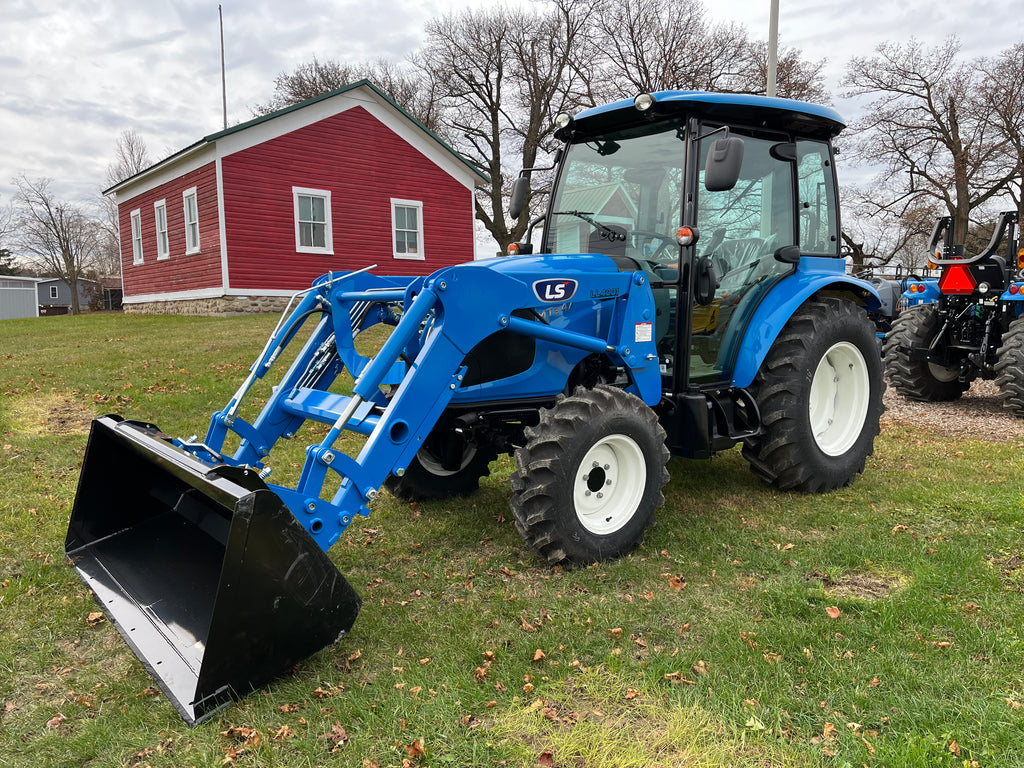

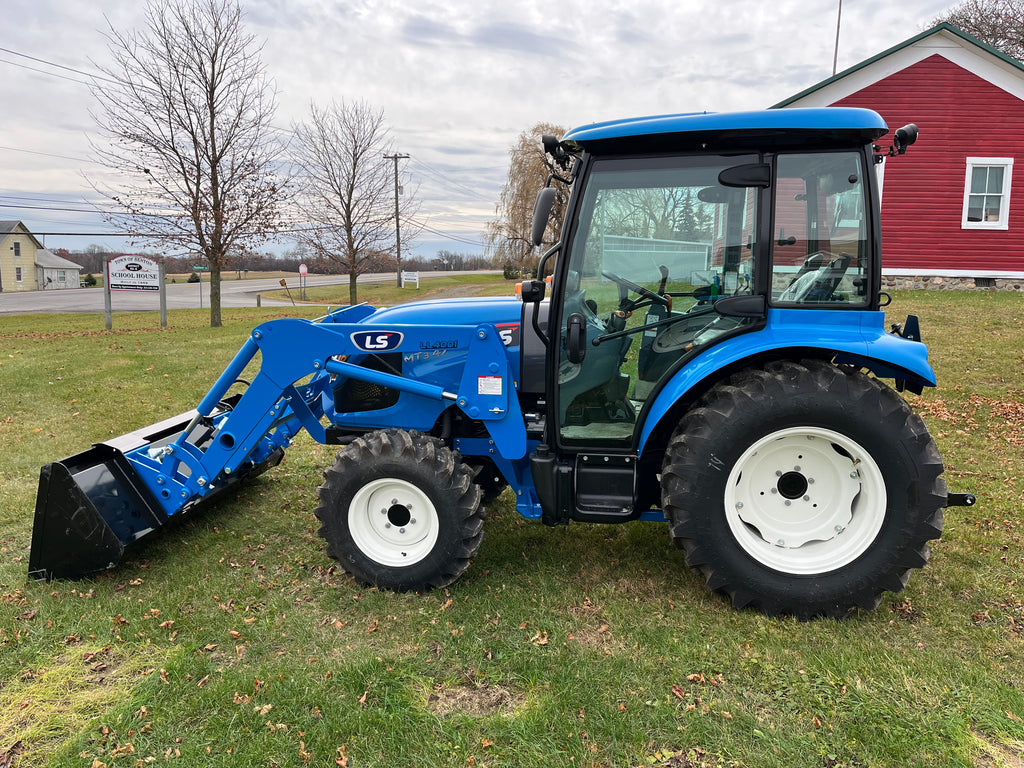

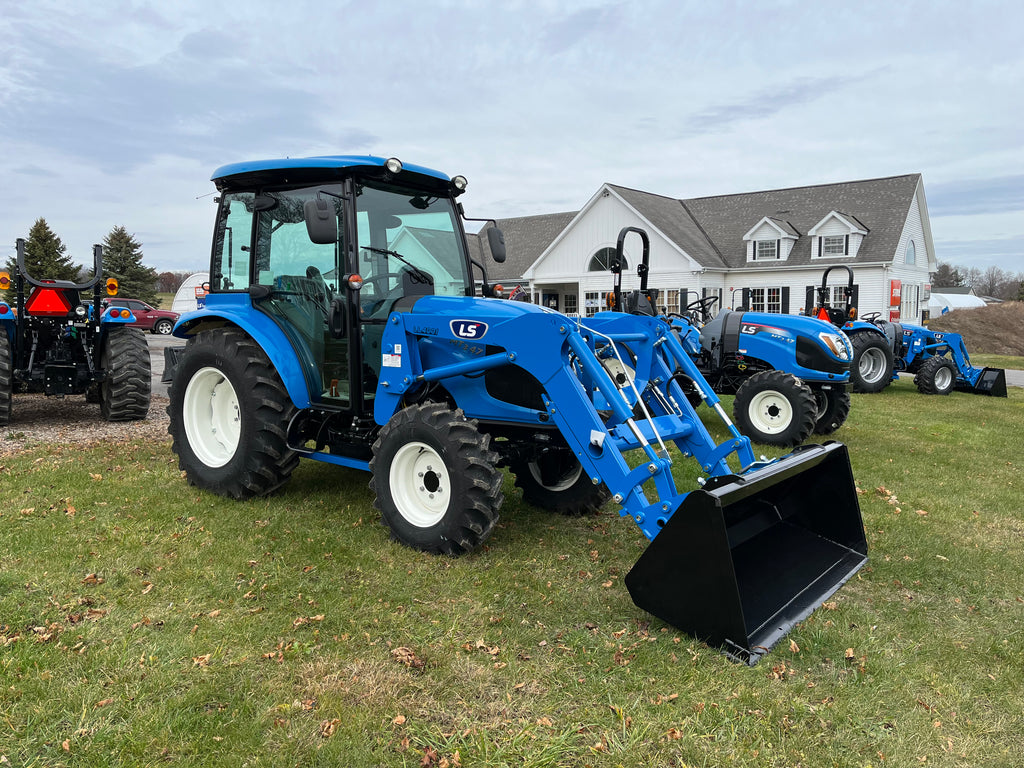

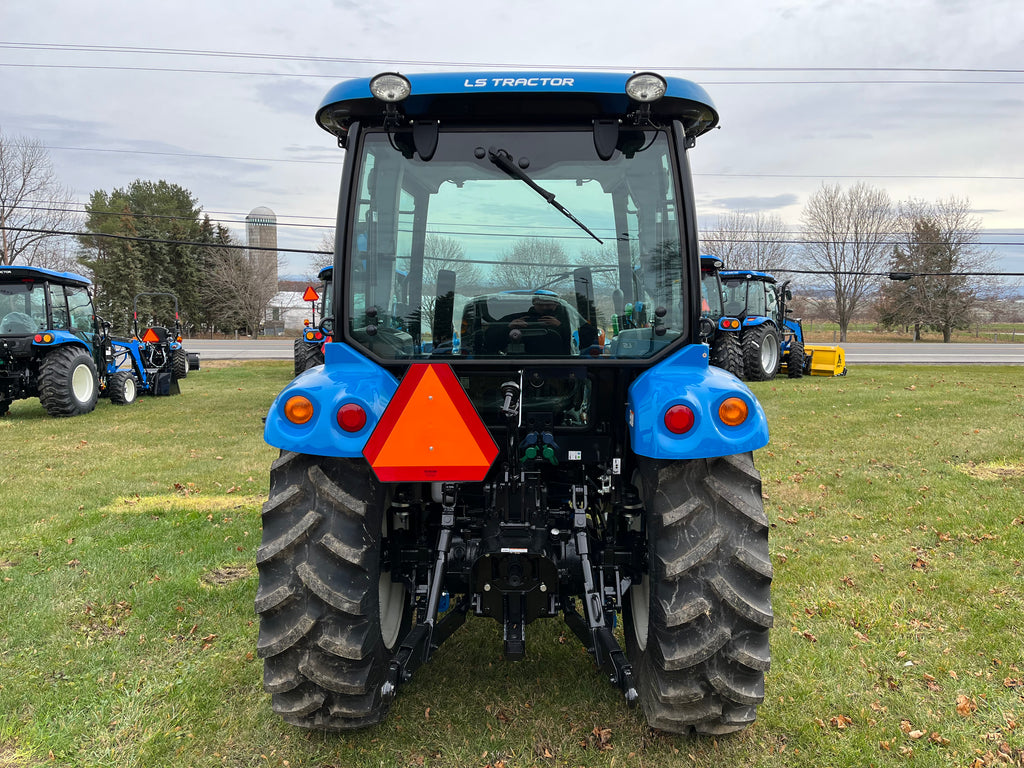

Description:

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor.

Specifications:

Engine:

• Type: 3-cylinder, liquid-cooled, Diesel, Turbocharged (TC), Common Rail Direct Injection (CRDI)
• Model (Tier 4): L3C19-T
• Gross Engine HP: 47 hp
• PTO HP: 39.9 hp (Hydraulic) / 37.6 hp (Gear-driven)
• Rated Speed (RPM): 2,600
• Displacement: 114.7 cubic inches
• Fuel Tank Capacity: 12.4 gallons (Cabin) / 10.6 gallons (ROPS - Roll-Over Protective Structure)
• Alternator: 12 V – 70 A

Drive Train:

• Transmission: Synchro Shuttle / Hydrostatic (HST)
• Number of Speeds: F16 x R16 (Gear) / 3 Ranges (HST)
• Brakes: Wet, Multi-disc

PTO (Power Take-Off):

• Type: Independent
• Rear RPM: 540

Hydraulic System:

• Control System: Position and Draft
• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow: 4.1 gpm (Gear) / 5.5 gpm (Hydrostatic) / 6.8 gpm (Hydro Cab)
• Total Flow: 12.3 gpm (Gear) / 13.7 gpm (Hydro) / 15.0 gpm (Hydro Cab)
• Category, 3-Point Hitch: CAT 1
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 pairs front, 2 pairs rear (1 with detent, 1 standard)

Dimensions:

• Overall Length (Bumper to Link): 133 inches
• Wheelbase: 73.2 inches
• Overall Width with Tires: 62.5 inches
• Height to Top of ROPS: 95 inches (ROPS) / 90 inches (Cab)

Tire Sizes:

• Agricultural Tires (Front/Rear): 9.5 – 16 / 13.6 – 24
• Industrial Tires (Front/Rear): 12 – 16.5 / 17.5L – 24
• Turf Tires (Front/Rear): 28 x 8.5 – 15 / 41 x 14 – 20

Weight:

• Total Weight (without ballast): 3,935 – 4,446 lbs (depending on configuration, e.g., with or without cab).
