Description:

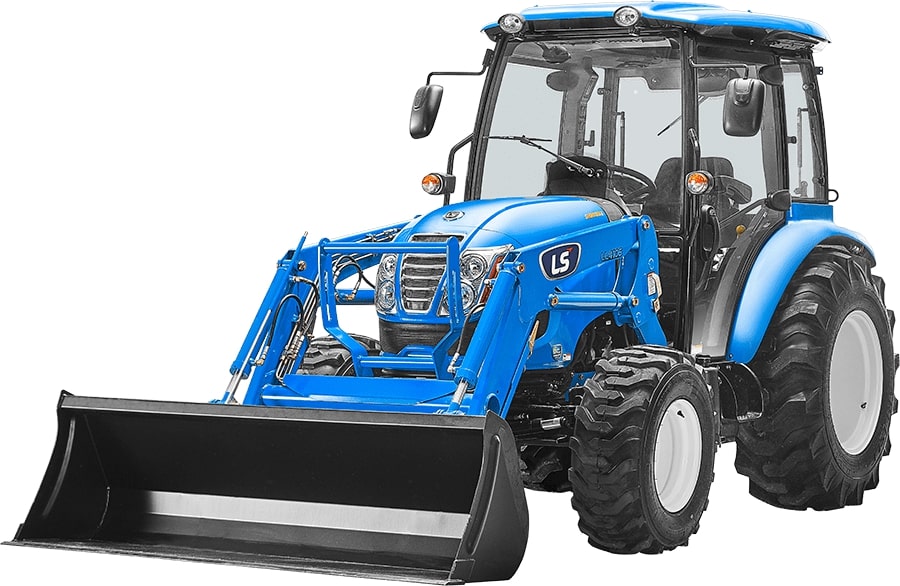

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Hydrostatic cab models feature the all-new Servo HST with Pedal Link.

Specifications:

ENGINE:

• Type: 3-cylinder, liquid-cooled, diesel, turbocharged (TC), Common Rail Direct Injection (CRDI)
• Model (Tier 4): L3C19-T
• Gross Engine HP: 52 hp
• PTO HP:
• 44.2 hp (Hydrostatic)
• 41.6 hp (Gear)
• Rated Speed (RPM): 2,600 RPM
• Displacement: 114.7 cubic inches
• Fuel Tank Capacity:
• 12.4 gallons (Cabin)
• 10.6 gallons (ROPS)
• Alternator: 12V – 70 Amps

DRIVE TRAIN:

• Transmission Type: Synchro Shuttle / Hydrostatic Transmission (HST)
• Number of Speeds:
• F16 x R16 (Gear)
• 3 Ranges (HST)
• Brakes: Wet, Multi-disc

PTO (Power Take-Off):

• Type: Independent
• Rear PTO Speed: 540 RPM

HYDRAULIC SYSTEM:

• Control System: Position/Draft
• Implement Pump Flow: 8.2 gallons per minute (gpm)
• Steering Pump Flow:
• 4.1 gpm (Gear)
• 5.5 gpm (Hydrostatic)
• 6.8 gpm (Hydrostatic with Cab)
• Total Flow:
• 12.3 gpm (Gear)
• 13.7 gpm (Hydrostatic)
• 15.0 gpm (Hydrostatic with Cab)
• 3-Point Hitch Category: Category I (CAT I)
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 pairs (1 detent, 1 standard)

DIMENSIONS:

• Overall Length (Bumper to Link): 133 inches
• Wheelbase: 73.2 inches
• Overall Width with Tires: 62.5 inches
• Height to Top of ROPS:
• 95 inches (ROPS)
• 90 inches (Cab)

TIRE SIZES:

• Agricultural (Ag) Front / Rear: 9.5 – 16 / 13.6 – 24
• Industrial (IND) Front / Rear: 12 – 16.5 / 17.5L – 24
• Turf Front / Rear: 28 x 8.5 – 15 / 41 x 14 – 20

WEIGHT:

• Total Weight without Ballast:
• 3,935 lbs (ROPS)
• 4,446 lbs (Cab)
