Description:

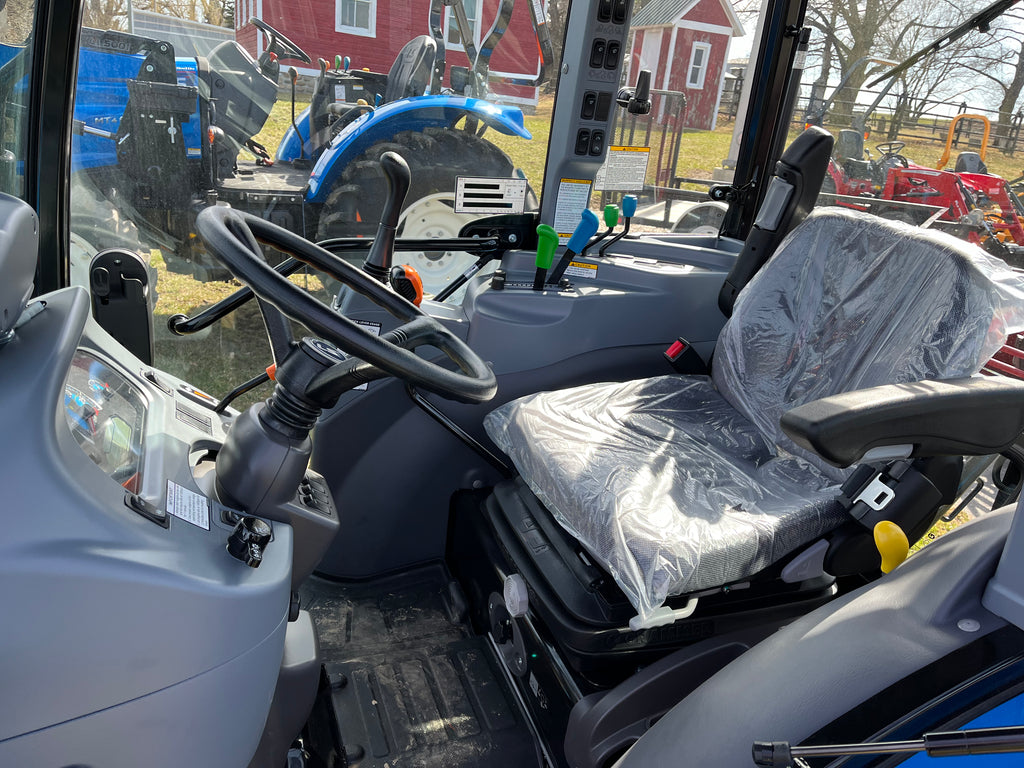

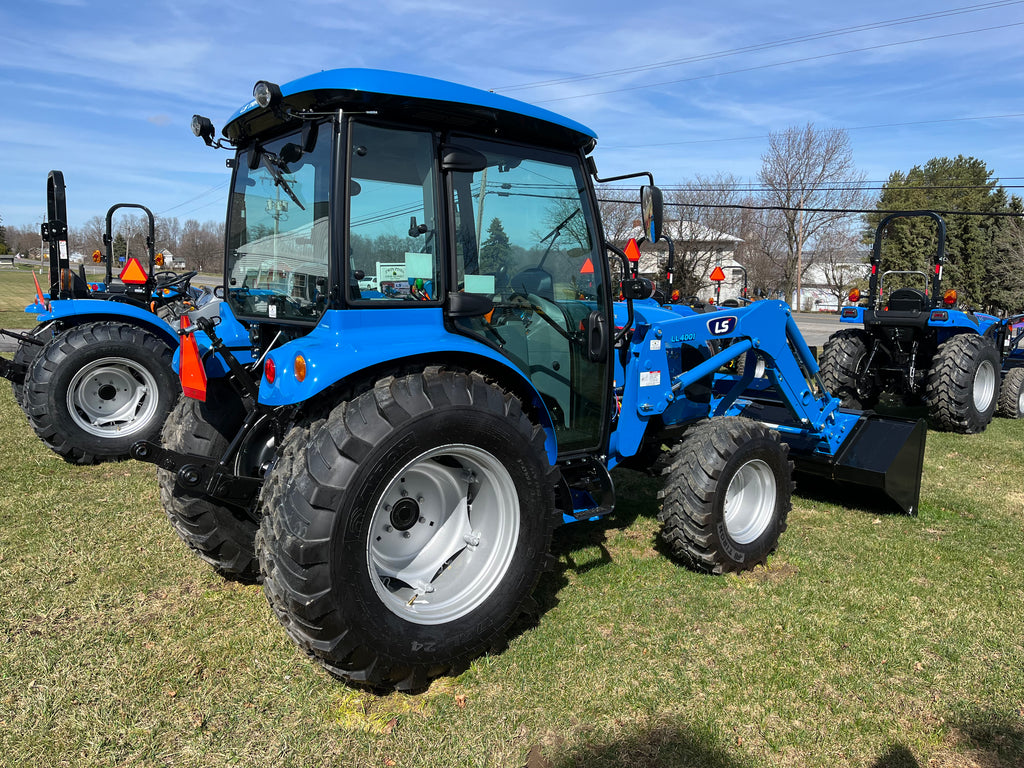

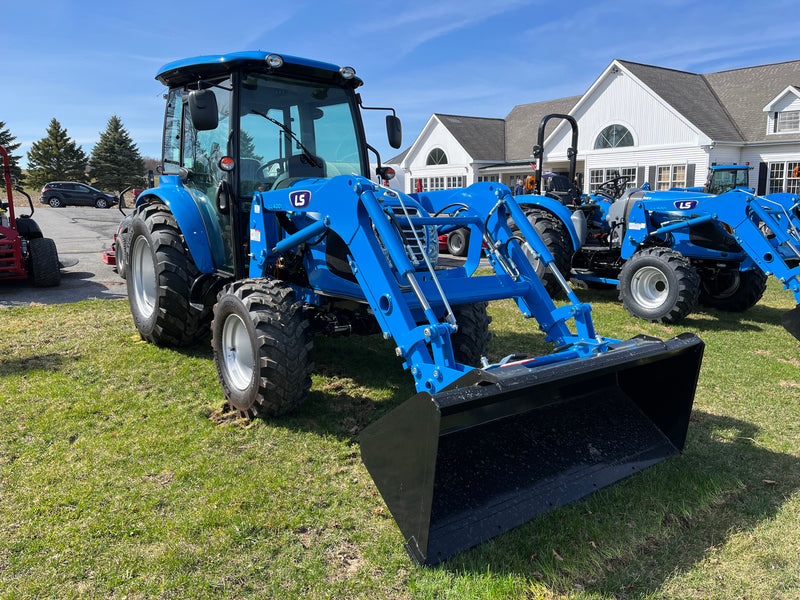

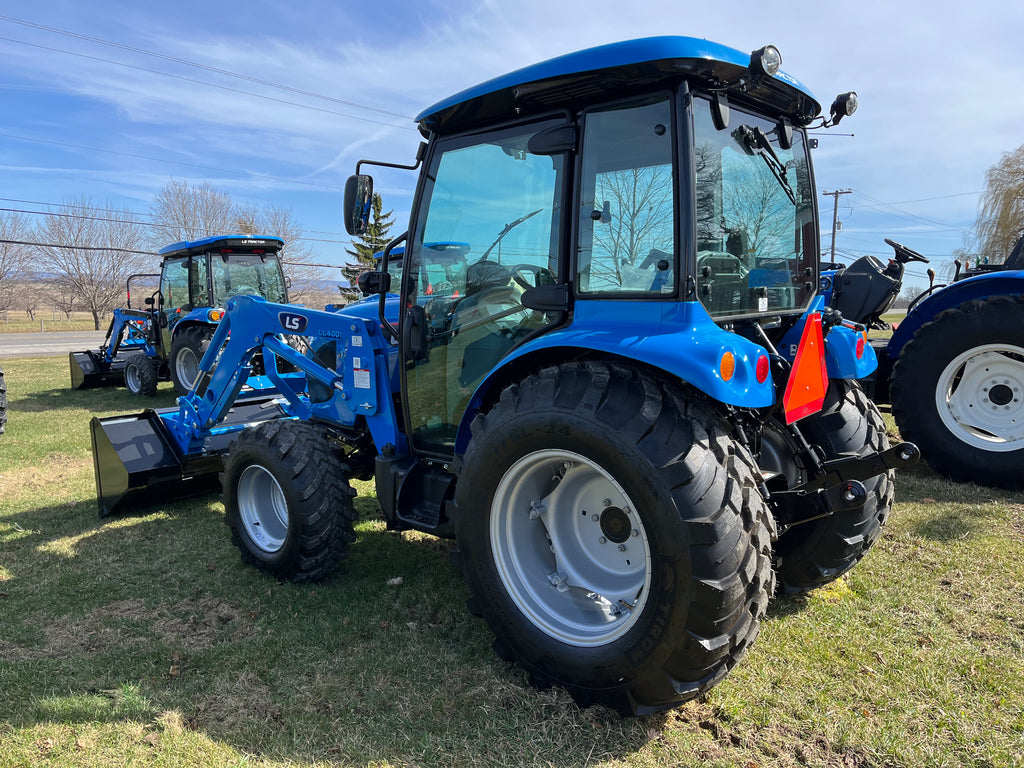

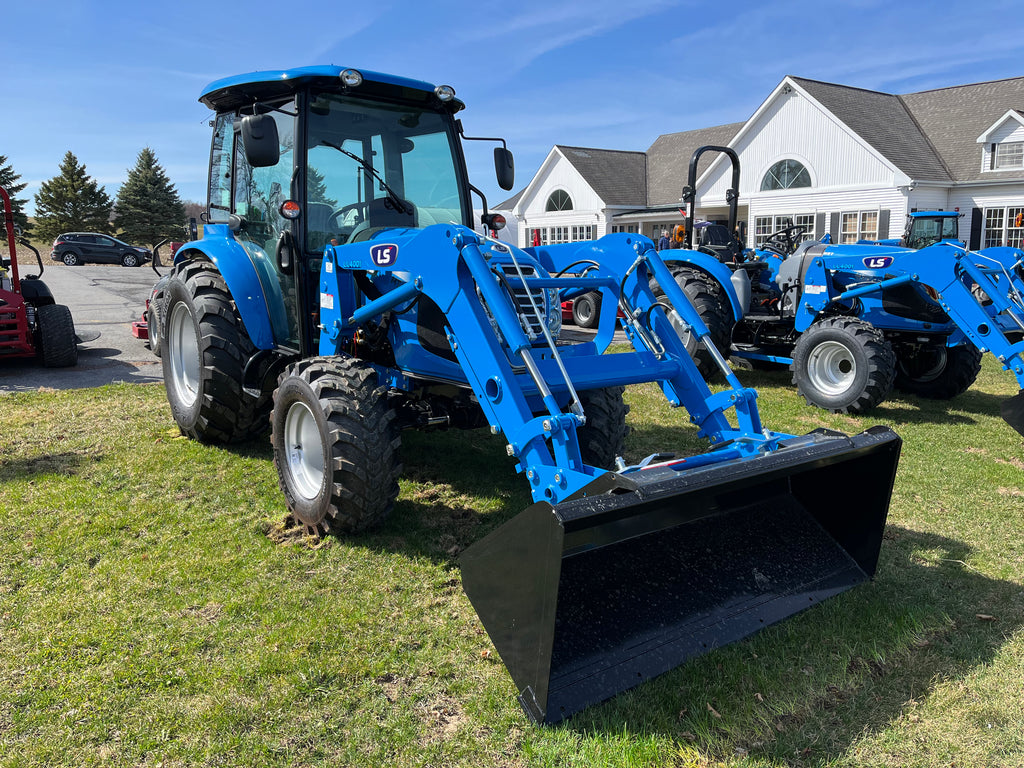

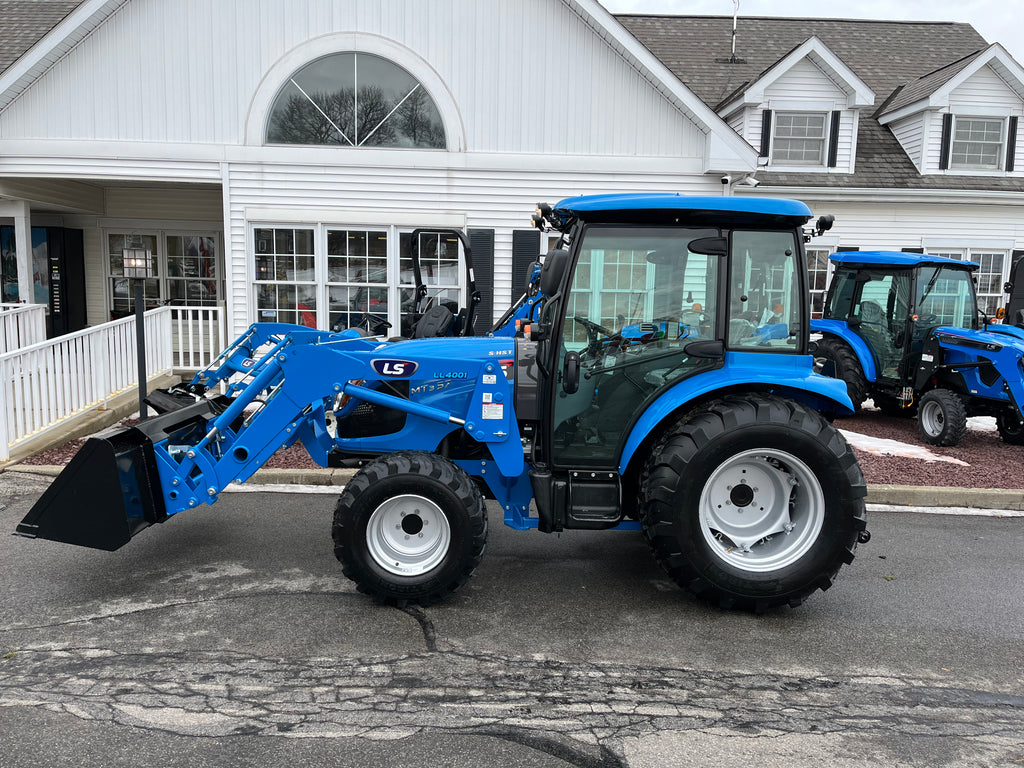

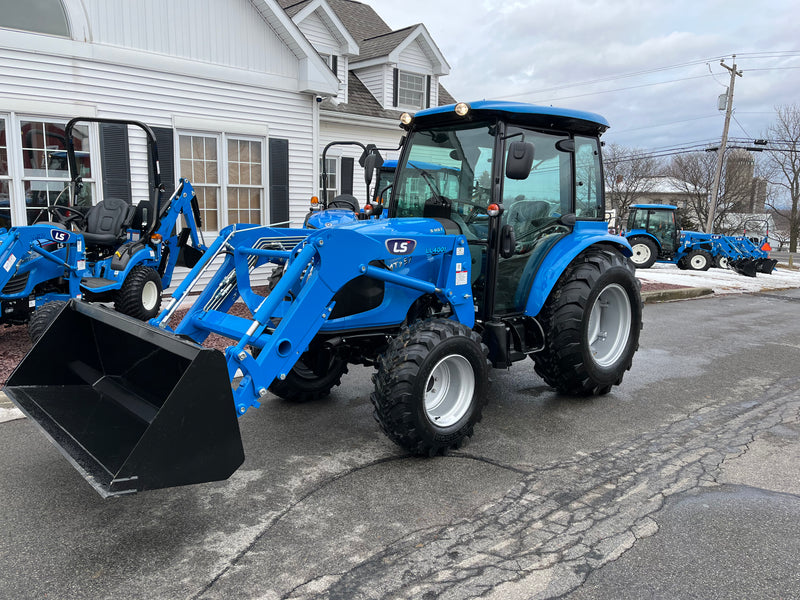

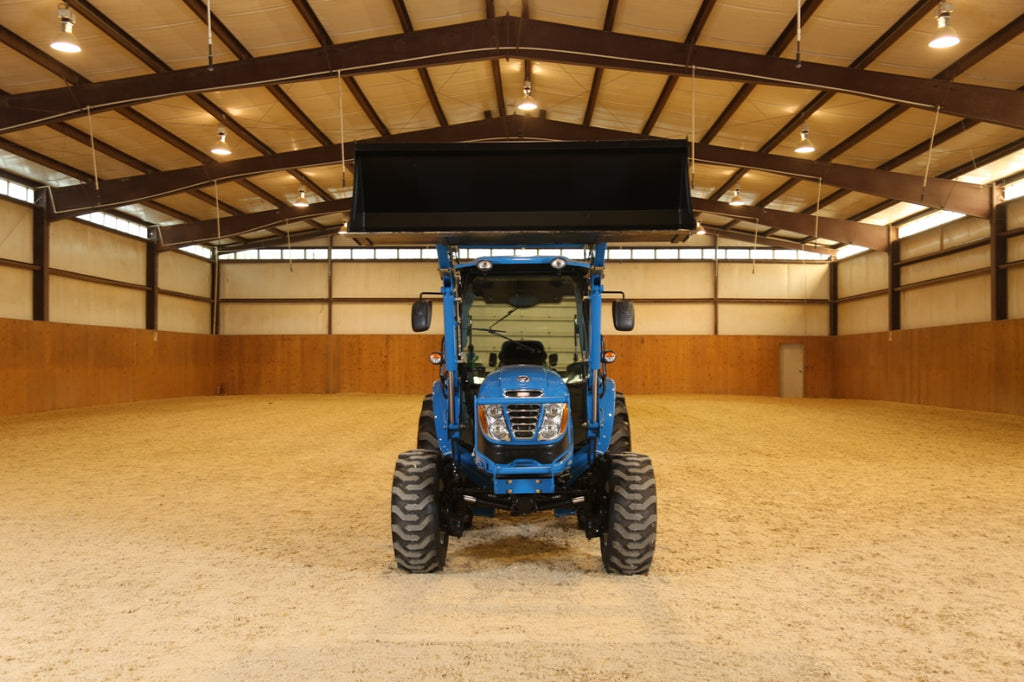

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Hydrostatic cab models feature the all-new Servo HST with Pedal Link.

Specifications:

Engine

• Type: 3-Cylinder, liquid-cooled, Diesel, TC, CRDI
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 57
• PTO HP:
• 48.4 (Hydraulic)
• 45.6 (Gear)
• Rated Speed (RPM): 2,600
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity:
• 12.4 gal (Cabin)
• 10.6 gal (ROPS)
• Alternator: 12V – 70A

Drive Train

• Transmission:
• Synchro Shuttle / HST
• 16 Forward x 16 Reverse (Gear)
• 3 Ranges (HST)
• Brakes: Wet, Multi-disc

PTO

• Type: Independent
• Rear PTO RPM: 540

Hydraulic System

• Control System: Position/Draft
• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow:
• 4.1 gpm (Gear)
• 5.5 gpm (Hydro)
• 6.8 gpm (Hydro Cab)
• Total Flow:
• 12.3 gpm (Gear)
• 13.7 gpm (Hydro)
• 15.0 gpm (Hydro Cab)
• Category (3 pt Hitch): CAT 2
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 Pair (1 Detent, 1 Std)

Dimensions

• Overall Length (Bumper to Link): 133 in
• Wheelbase: 73.2 in
• Overall Width with Tires: 62.5 in
• Height to Top of ROPS: 95 in (ROPS) / 90 in (Cab)

Tire Size

• Ag Tires (Front / Rear):
• 9.5 – 16 / 13.6 – 24
• Industrial Tires (Front / Rear):
• 12 – 16.5 / 17.5L – 24
• Turf Tires (Front / Rear):
• 28 x 8.5 – 15 / 41 x 14 – 20

Weight

• Total Weight (Without Ballast):
• 3,869 lbs
• 4,446 lbs (Cab)
