This model has been discontinued by the manufacturer.

Click here to view the current model: LS Tractor MT463CPS

Description:

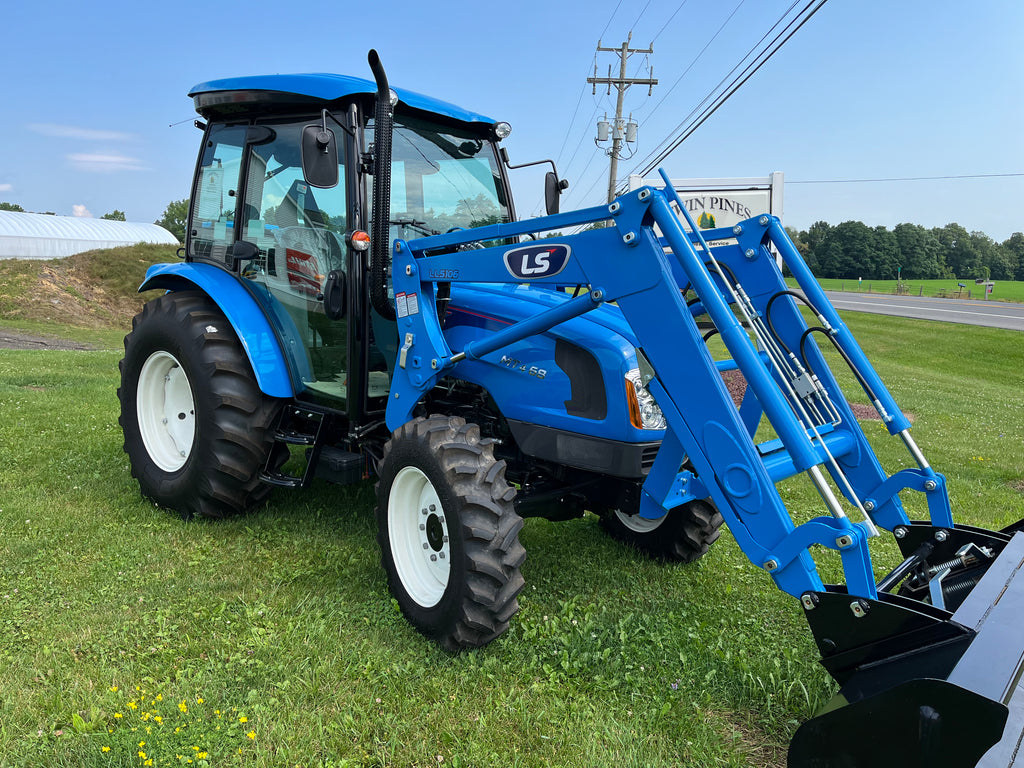

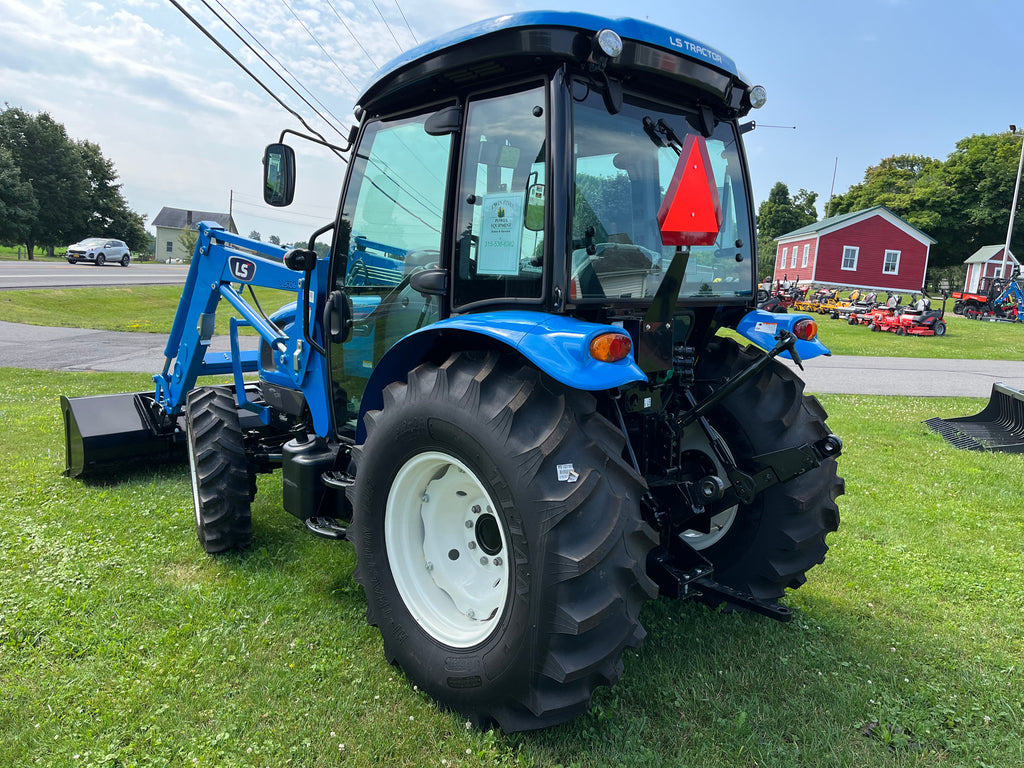

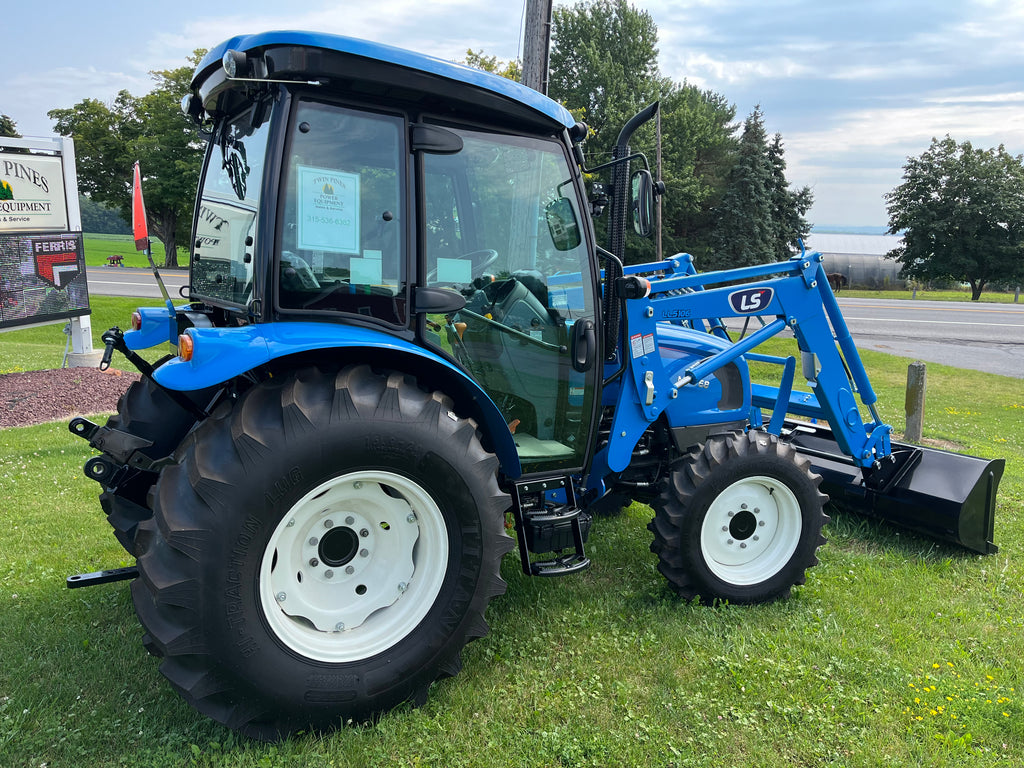

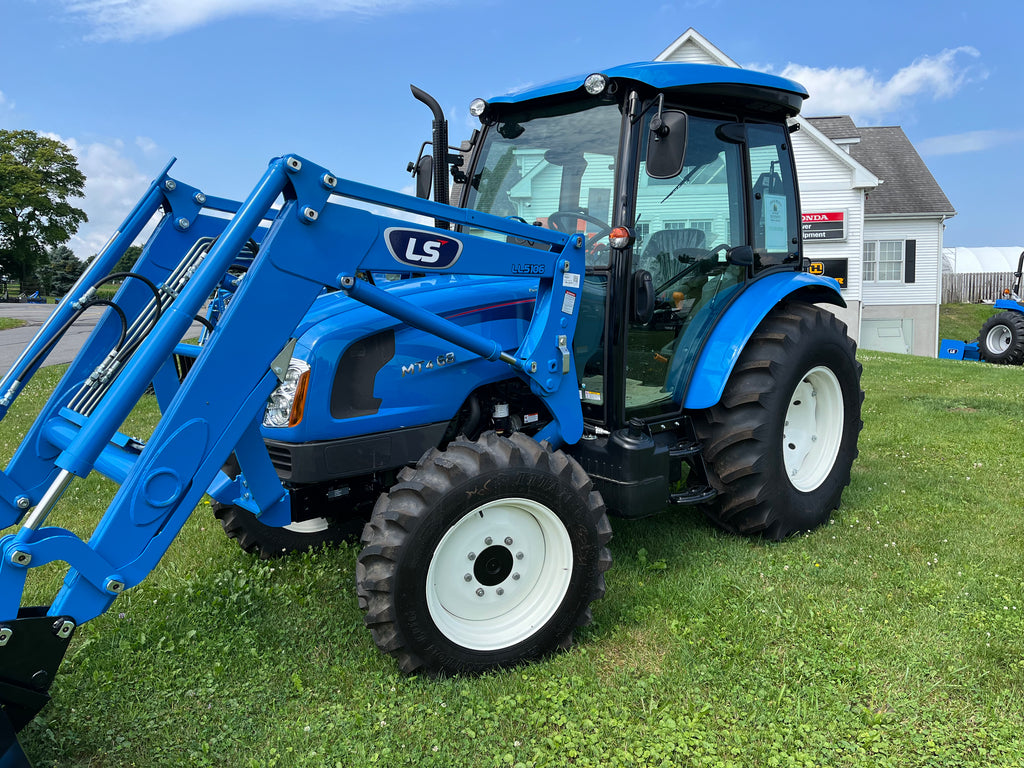

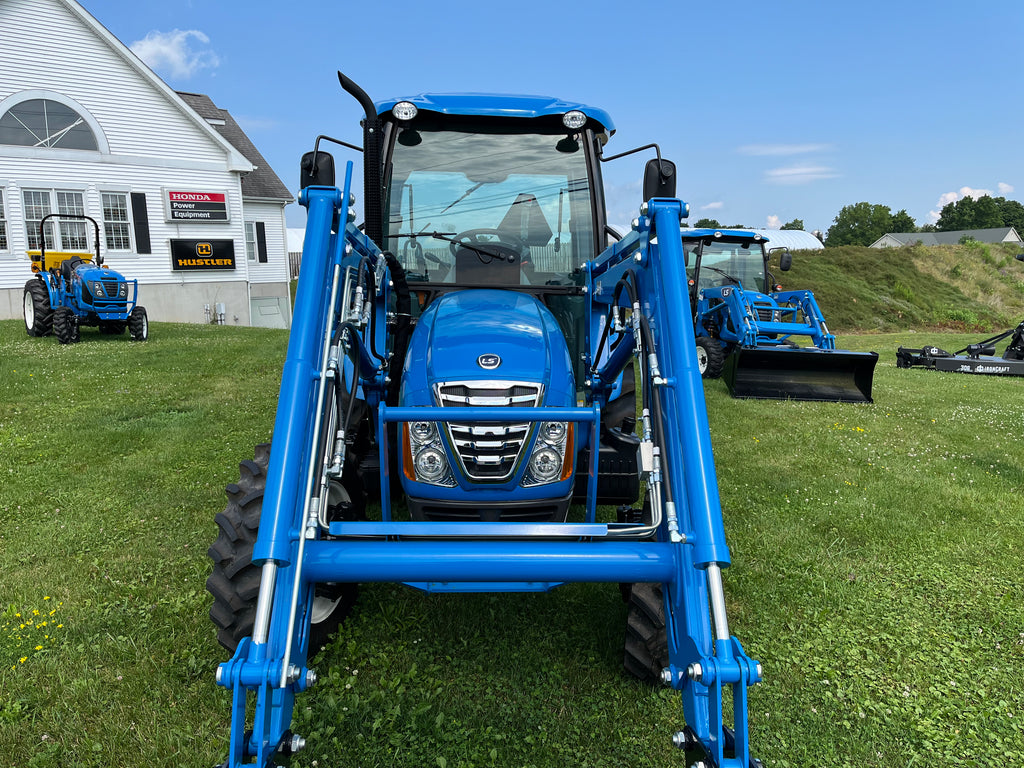

The MT4 features a variety of configurations enabling you to find the exact configuration you need. A ROPS and Cab version are available with highly featured operator platforms/cabs. The ergonomic design provides all-day comfort, as the robust frame provides high-capacity front loader and three point lift.

Specifications:

ENGINE

• Type: Vertical Water-Cooled 4-Cycle Diesel Engine
• Model (Tier 4): L4C25-T
• Engine HP (Gross): 68
• PTO HP: 60
• Rated Speed (RPM): 2,500
• Displacement (cu. in): 152.8
• Fuel Tank Capacity (gal): 21.1
• Alternator (V-A): 12 – 70

DRIVE TRAIN

• Transmission: Synchro Shuttle
• No. of Speed: F16 x R16
• Brakes: Wet, Multi Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear, rpm: 540

HYDRAULIC SYSTEM

• Control System: Position/Draft
• Implement pump (gpm): 9.9
• Steering pump (gpm): 4.6
• Total flow (gpm): 14.5
• Category, 3 pt hitch: CAT II
• Hitch Lift capacity, lbs (Hitch end): 4,079
• Remote Valves: 2 pairs (Front), 2 pairs (Rear), (detent & standard)

DIMENSIONS

• Overall length with 3pt (in.): 138.6
• Wheelbase (in.): 80.3
• Min. overall width with Ag tires (in.): 70
• Height to top of Cab with Ag tires (in.): 103

TIRE SIZE

• Ag Front/Rear: 9.5 – 20 / 16.9 – 24
• Industrial Front/Rear: 10.5/80 – 18 / 19.5L – 24

WEIGHT

• Total weight without ballast (lbs.): 4,674
